Wood-Mizer industrial sawmill equipment
Bailey's is a Wood-Mizer dealer for industrial systems: WM headrigs, sawmill systems, edgers, resaws, multirips, twin vertical saws, log decks and conveyors, planned with a specialist around your logs and your site.
Bailey's handles Wood-Mizer's systems side only. Wood-Mizer portable sawmills are not part of our range.
What Bailey's offers from Wood-Mizer
Wood-Mizer's systems range is built for commercial mills: a production headrig, the machine centers that turn its flitches and cants into boards, and the handling that keeps logs and lumber moving. Buy one machine for the mill you run, or plan a line.
Industrial headrigs
3 headrigs: WM2500, WM4500, WM5500
Horizontal band headrigs that open the log: the WM2500, the cab-run WM4500 and the wideband WM5500.
Compare the WM headrigs
Sawmill systems
8 systems: System 1, System 2, System 5, System 7 and more
Headrig or twin vertical saw, machine centers and handling laid out as one line, by log size and volume.
See sawmill systems
Edgers, resaws and multirips
21 machines: MR200, MR250, MR3000, MR6000 and more
Board edgers, horizontal resaws, multirips and twin vertical saws, standalone or behind a headrig.
See edgers and resaws
Log decks, conveyors and scanning
13 items: Heavy Duty Log Deck, 2 Strand Log Deck (SLP), Log Incline Deck (SLP), Log Ramp (SLP) and more
Log decks and ramps, incline and roll-case conveyors, transfer and sorting tables, green chain and a log tally scanner.
See log decks and conveyors
Not offered here: Wood-Mizer's portable sawmills. Bailey's sells Wood-Mizer's industrial systems side only.
Wood-Mizer WM industrial headrigs
Three electric horizontal band headrigs for logs up to about 41 in, as published by Wood-Mizer. Each runs on its own or at the head of a line of Wood-Mizer resaws, edgers and conveyors, and all three appear in Wood-Mizer's example systems.

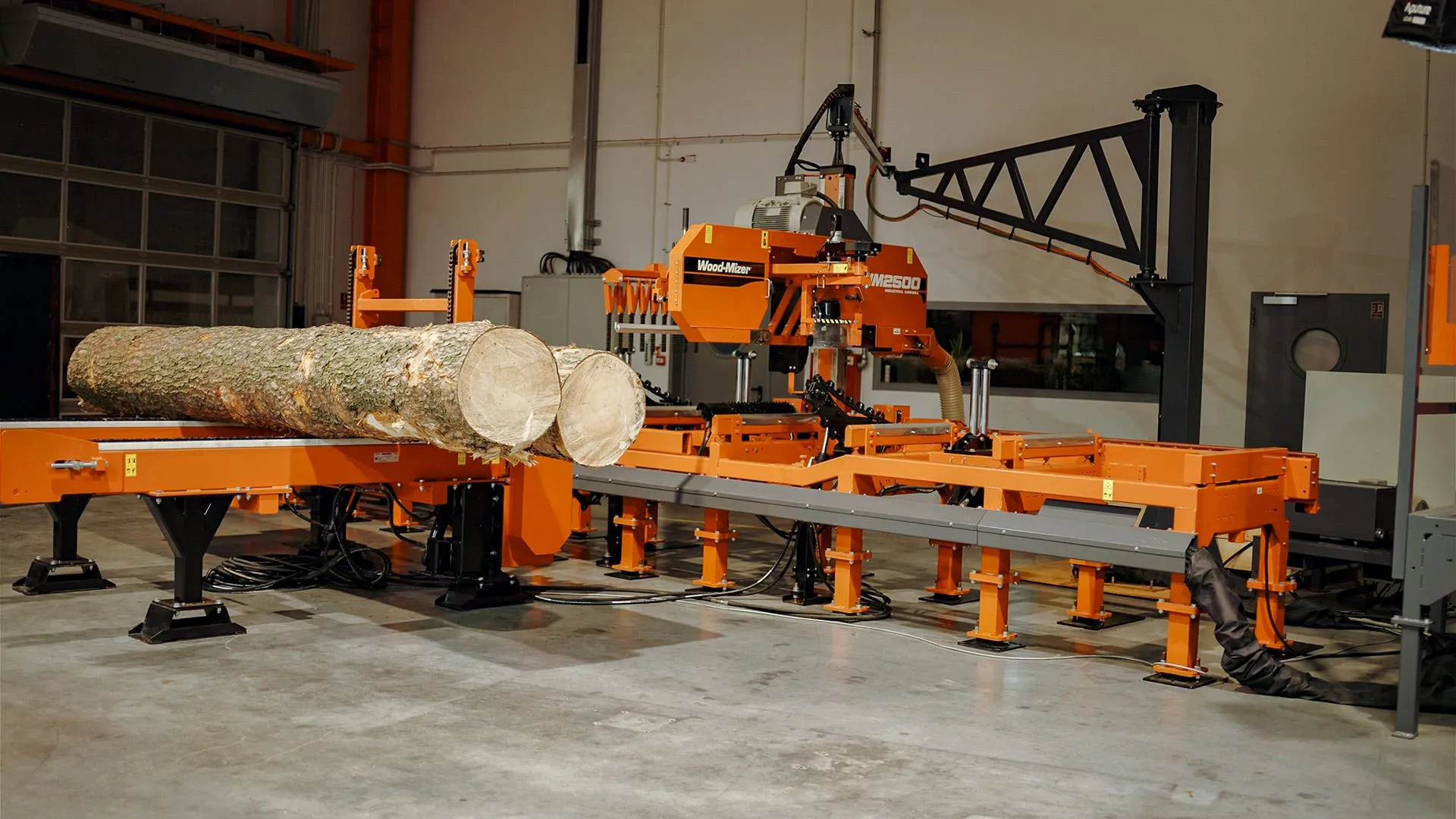

Wood-Mizer WM2500 Industrial Sawmill
Made for: Pallet, grade and lumber work, standalone or in a line
Specs and details
A production band headrig for pallet, grade and lumber work, run standalone or as part of a line, with servo head up/down, a standalone operator console and a debarker as standard.
- Max log diameter
- 41 in (1.05 m)
- Max width of cut
- 33 in (84 cm)
- Main motor
- 30 HP (22.4 kW) 3-phase electric
- Blade width
- 1-1/2 in (38 mm); 2 in (50 mm) optional
All published specifications
- Max log diameter
- 41 in (1.05 m)
- Max width of cut
- 33 in (84 cm)
- Log length
- 6–20 ft (1.8–6.1 m)
- Power
- 30 HP (22.4 kW) 3-phase electric
- Blade width
- 1-1/2 in (38 mm); 2 in (50 mm) optional
- Blade wheels
- 24 in (600 mm) diameter
- Log handling
- 2 bi-directional chain turners, powered taper rollers, dual-rod log clamp
- Board removal
- Material drag-back system and cant removal
- Hydraulic pump
- 10 HP at 7.4 GPM (7.5 kW at 28 LPM)
- Dimensions, weight and supply voltage are not published on the product page.

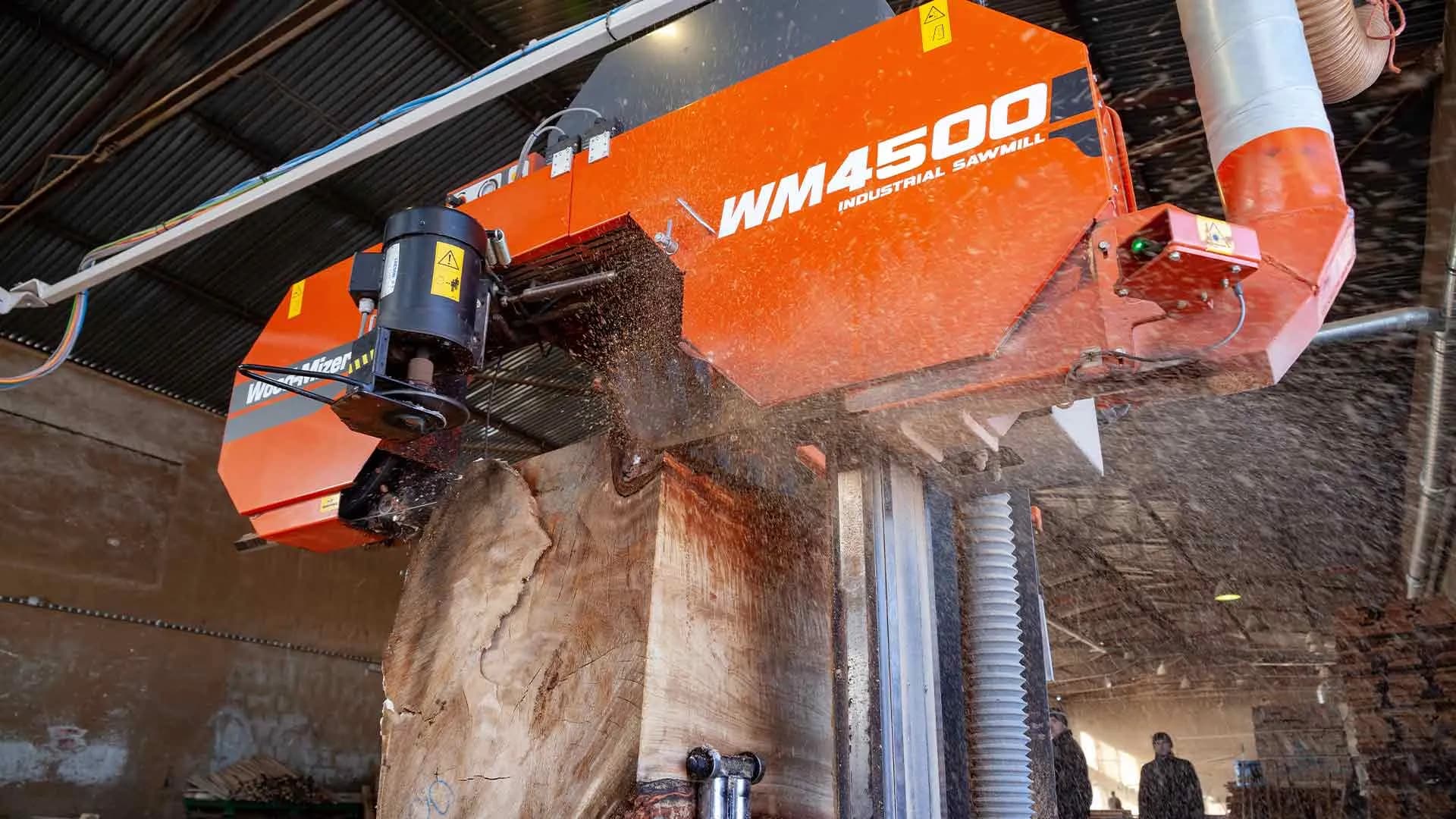

Wood-Mizer WM4500 Industrial Sawmill
Made for: Wood-Mizer’s flagship, run from an enclosed cab
Specs and details
Wood-Mizer’s flagship horizontal headrig for pallet boards, grade or dimensional lumber and log breakdown, run from an enclosed operator cab with touchscreen setworks and a built-in board return.
- Max log diameter
- 40 in (summary as published)
- Max width of cut
- 32-1/4 in (81.9 cm)
- Main motor
- 30 HP (22 kW) electric
- Blade width
- 2 in (50 mm)
All published specifications
- Max log diameter
- 40 in (summary as published)
- Max width of cut
- 32-1/4 in (81.9 cm)
- Max depth of cut
- 16 in (0.405 m)
- Max log length
- 22 ft 6 in (6.85 m); 21 ft with board removal
- Power
- 30 HP (22 kW) electric
- Blade width
- 2 in (50 mm)
- Head feed
- 150 ft/min forward, 300 ft/min return
- Operator station
- Enclosed cab; air conditioning and heat optional
- Log handling
- 2 bi-directional chain turners, 2 hydraulic leveling rollers, floor-mounted hydraulic clamp
- Log loading
- 12 ft or 20 ft log deck; right-side loading optional
- Shop air
- 110 psi at 16.5 cfm
- Wood-Mizer publishes the 40 in log diameter only in the page summary; the spec table has no log-diameter row.
- Summary tile shows 32.5 in max cut; the spec table gives 32-1/4 in, which is used here.

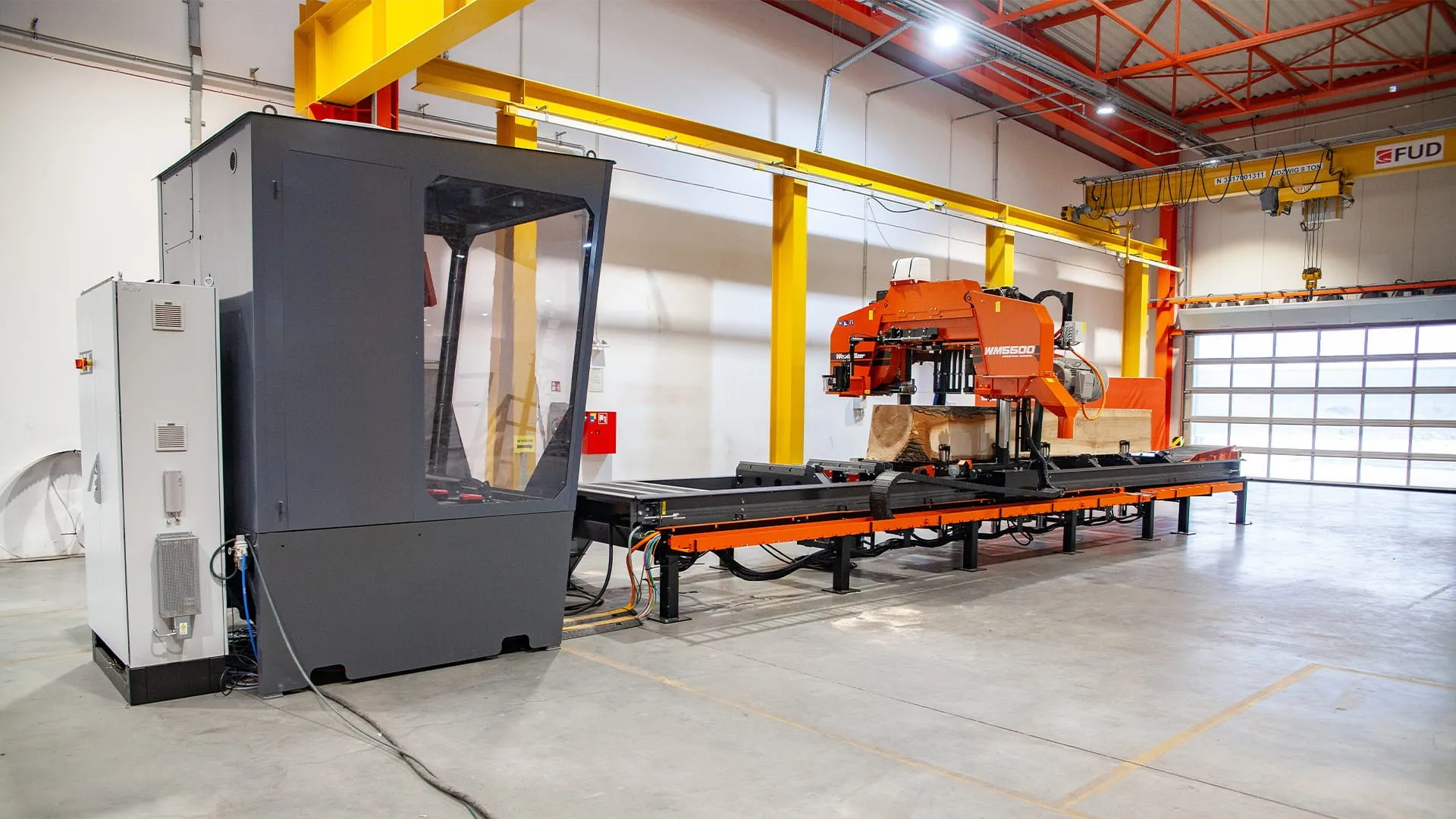

Wood-Mizer WM5500 Industrial Sawmill
Made for: Wideband twin-rail headrig for larger logs
Specs and details
A twin-rail wideband headrig, the successor to Wood-Mizer’s WB2000, with servo head positioning, PLC setworks with an automatic mode and a blade width chosen at order, from 2 in up to wideband.
- Max log diameter
- 41 in (1.05 m)
- Max width of cut
- 35 in (900 mm)
- Main motor
- 50 HP (37 kW) electric
- Blade width
- 2–5 in (50–120 mm), chosen at order
All published specifications
- Max log diameter
- 41 in (1.05 m)
- Max width of cut
- 35 in (900 mm)
- Max cant width
- 34 in (850 mm)
- Max log length
- 24 ft 6 in (7.5 m) as listed; bed length is configured per order
- Power
- 50 HP (37 kW) electric
- Blade width
- 2–5 in (50–120 mm), chosen at order
- Blade wheels
- 31-1/2 in (800 mm) crowned cast iron, non-belted
- Setworks
- PLC industrial setworks with automatic mode; servo head up/down
- Log handling
- Hydraulic clamps, chain turners, leveling rollers and side supports; 7.5 or 11 kW hydraulic unit
- Options
- Debarker, laser sight, head tracking conveyor, log deck
- Wood-Mizer’s text says logs “up to 40 in” and a 35-1/2 in cut; the spec table (41 in, 35 in) is used here.
- Blades wider than 3 in fall outside every sharpener and setter Wood-Mizer lists.
Running one of these at the head of a line? See the Wood-Mizer sawmill systems built around them. See Wood-Mizer sawmill systems
Specifications as published by Wood-Mizer; confirm your configuration with a specialist. Figures are from Wood-Mizer's US product pages, observed October 2026; where a page disagrees with itself, the spec-table value is shown. Wood-Mizer publishes no production capacity for these headrigs.
Every Wood-Mizer system and machine center we offer
Wood-Mizer edgers, resaws, multirips, twin vertical saws, sawmill systems and handling, model by model. Each links to its full specifications on the Wood-Mizer systems, machine-center or handling page.
Sawmill systems (8)
Sawmill systemsShow the 8 models
- System 1High throughput of small logs with automated material flow, for pallet and structural-timber sawmillers.
- System 2A line built around the WM4500 headrig.
- System 5A large-log line for softwood, hardwood and tropical logs from 8 to 40 ft.
- System 7High-production, optimized small-log sawing, customized to the mill’s requirements.
- System 9A traditional horizontal headrig with automated flow between sawing, crosscutting and sorting, plus a multi-head crosscut.
- System 10Board production with a focus on yield: material from more than one sawmill feeds a single edger, with automated sorting and waste separation.
- System 12An automated line that cuts irregular logs into a consistent product, with a high-speed chop saw that reads chalk lines, in a compact footprint.
- System 13A lower-investment, high-throughput pallet line with minimal infrastructure requirements.
Resaws (7)
Edgers and resawsShow the 7 models
- HR250 SuperA compact twin-blade horizontal resaw (Made in the USA, per Wood-Mizer) that resaws lumber and pallet boards into two or three pieces per pass.
- HR300A heavy-duty single-head band resaw with an 8° tilting head, steel belt conveyor and variable feed.
- HR500An entry-level modular multi-head resaw, one to six heads, for pallet boards, siding, flooring and fencing.
- HR700A large-capacity modular multi-head resaw built from two-head modules, with a twin-track steel belt conveyor and spiked top-roller hold-downs.
- HR1000A high-end modular multi-head resaw with a spiked chain bed and powered feed rollers, and an optional merry-go-round return for automated cant breakdown.
- HR5500A high-throughput single, twin or multi-head horizontal resaw on a high-strain column, for narrowband or 3 in performance blades.

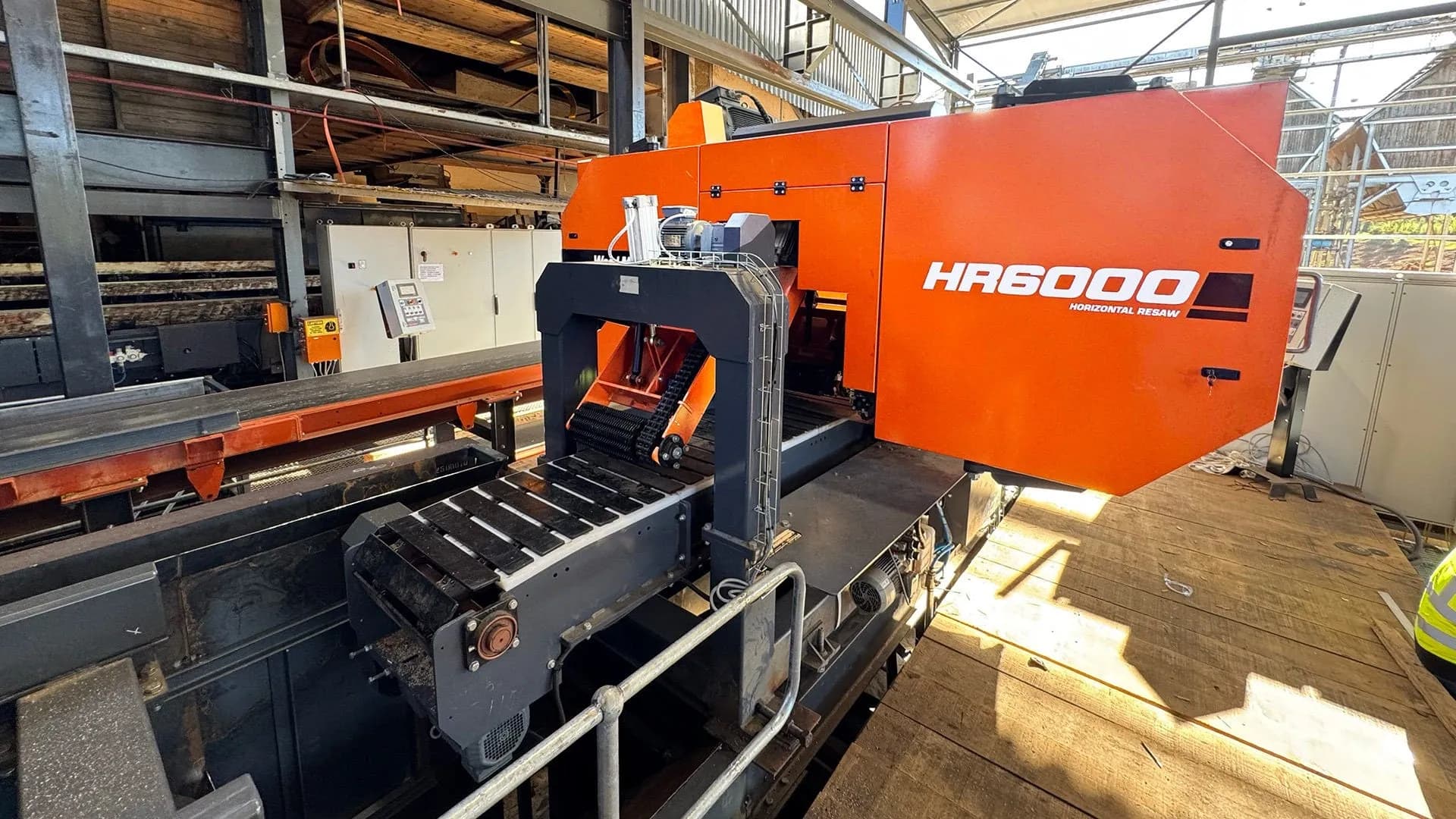

- HR6000A wideband single or twin-head resaw with an electric servo sizing system for fast size changes and no pre-sorting of sideboards.
Board edgers (6)
Edgers and resawsShow the 6 models
- EG300A twin-blade board edger with setworks that converts to a five-blade multirip with Wood-Mizer’s blade kit, standalone or in a line.
- EG350An edger and gang saw in one: two 15-3/4 in blades for edging, or up to five on a spacer sleeve in gang-saw mode.
- EG400A heavy-duty twin-blade edger for use behind an industrial headrig, with feed speed set by material thickness and two lasers standard.
- EG800A manual board edger and gang saw for industrial mills, edging boards from resaws or vertical saws, with a wide arbor that takes multiple blades.
- EA1000A vision-optimized automated edger for hardwood mills: each board is scanned, optimized for volume and value, aligned and sawn, with a manual mode as fallback.
- EA3000A faster optimizing edger with optical scanning, hook-stops and two decoupled servo-set blades, with in-line or transverse scanning.
Multirips and gang saws (4)
Edgers and resawsShow the 4 models
- MR200A double-arbor gang rip saw that rips cants into boards for pallet and lumber operations, with height-adjustable arbors and an optional built-in chipper.
- MR250An industrial double-arbor multirip for single-pass ripping, standalone or in a line, with electric blade adjustment and 8 powered feed rollers.
- MR3000A dual-arbor multirip with an optical material scanner and pneumatic hold-downs, which Wood-Mizer calls the workhorse of its sawmills.

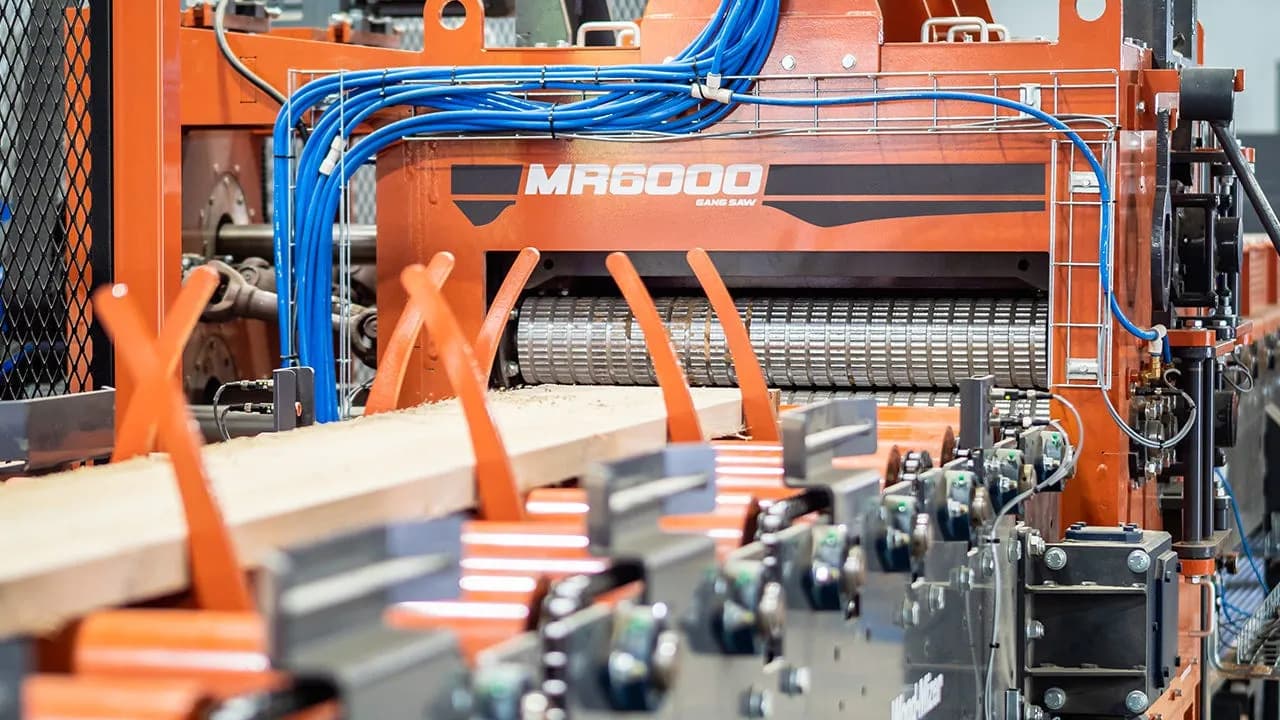

- MR6000Wood-Mizer’s largest-capacity gang rip saw, for demanding industrial and pallet mills, with scanning and optimizing feed options.
Twin vertical saws (4)
Edgers and resawsShow the 4 models
- TVSRemoves two sides of a log, cant or slab in one pass.

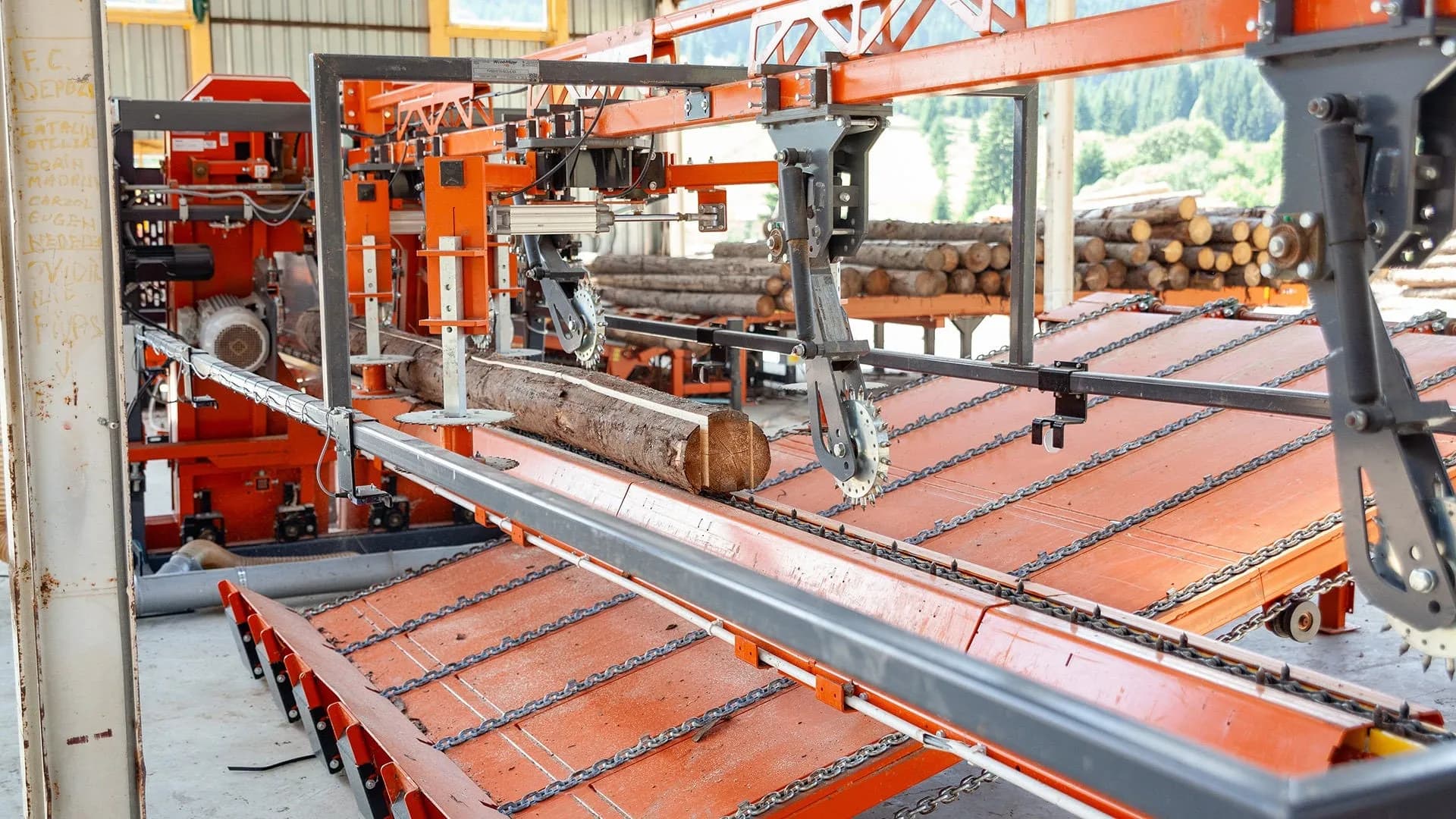

- TVSHDA heavy-duty twin vertical primary breakdown saw for small logs and pallet lines, with an incline log deck and automated log turner as standard.
- TVSHD EcoA simplified twin vertical saw for high-throughput small-log processing, with continuous log feeding and a 2 in blade.
- TV6000Wood-Mizer’s heaviest primary-breakdown twin vertical saw, for high throughput of small to medium logs ahead of a gang saw or multirip.
Log decks and ramps (4)
Log decks and conveyorsShow the 4 models
- Heavy Duty Log DeckAn industrial deck for staging and loading heavy logs, with a full-length I-beam reinforced deck, large loader ends and strengthened legs.
- 2 Strand Log Deck (SLP)A two-strand log infeed deck for Wood-Mizer’s Smart Log Processing (SLP) line.
- Log Incline Deck (SLP)An incline deck that brings logs to the operator station in a controlled way for continuous feeding into the TVS twin vertical saw.
- Log Ramp (SLP)A ramp that makes forklift loading of the SLP log deck easier and adds to the deck’s log capacity.
Tables and conveyors (8)
Log decks and conveyorsShow the 8 models
- Green ChainA modular three- or four-strand lumber delivery chain that moves sawn lumber at a controlled rate for grading and stacking.
- Belted Sawdust ConveyorA heavy-duty single-phase belt conveyor that carries sawdust to a central collection point; ships disassembled on a skid.

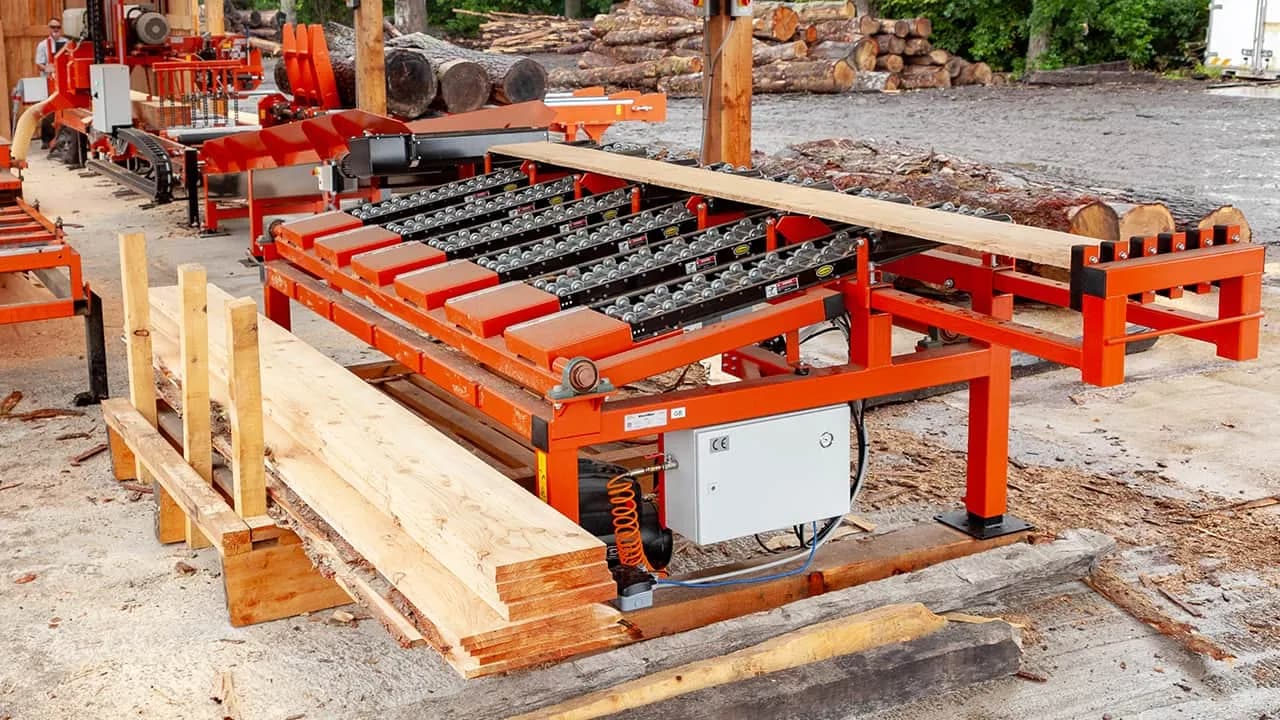

- Transfer TableA pneumatic cross-transfer table after the incline conveyor: a sensor-triggered airbag tilts the rollers and pneumatic kickers push to the other side, with no chains, gears or motors.
- Three-Way Sorting TableA heavy-duty, modular three-way sorting table for timber of various lengths, with several transfer options.
- Roll Case ConveyorA powered roll case with adjustable legs that moves material downstream of the sawmill.
- Idle Roller TableA height-adjustable inline idle roller table for straight material flow within a system.
- IC-2 Incline ConveyorAn incline conveyor sized to mate with Wood-Mizer headrigs, carrying cut pieces away at a slight incline to a transfer deck or three-way conveyor.
- IC-5 Incline ConveyorAn incline conveyor that receives each cut piece as it is pushed off a Wood-Mizer headrig and carries it away at a slight incline.
Descriptions summarize Wood-Mizer's US product pages, observed October 2026. Wood-Mizer's systems are illustrative combinations rather than fixed packages; a specialist confirms which machines and options fit your mill.
About Wood-Mizer
Wood-Mizer LLC is based in Indianapolis, Indiana. By its own account it has been building sawmills since 1982.
Hobby mills to production lines
Wood-Mizer describes its range as running from hobby sawmilling to high-production mills. Its industrial side is grouped as sawmill systems, machine centers and material handling.
Systems are starting points
Wood-Mizer shows its systems as example lines sorted by log diameter, volume and wood type, and says it designs and engineers custom lines to suit the mill.
Handling that fits the mill you have
Wood-Mizer says its log decks, conveyors and tables are modular, configured to log length, diameter and site layout, and can be retrofitted to existing lines.
Where Bailey’s fits
Bailey’s is a Wood-Mizer dealer for industrial systems. Enquiries go to Bailey’s sawmill sales line, where a specialist works through the machines and options with you.
Company facts as published by Wood-Mizer on woodmizer.com, observed October 2026. Wood-Mizer's own pages sometimes give different figures for the same machine, so a specialist confirms specifications for your configuration before you order.
Wood-Mizer questions
Anything else, call a specialist at 1-888-465-8227.
Is Bailey’s a Wood-Mizer dealer?
Yes. Bailey’s is a Wood-Mizer dealer for industrial systems: the WM2500, WM4500 and WM5500 headrigs, Wood-Mizer sawmill systems, its edgers, resaws, multirips and twin vertical saws, and its log decks, conveyors, tables and log tally scanner. Call 1-888-465-8227 or send the form below and a specialist will go through them with you.
Does Bailey’s sell Wood-Mizer portable sawmills?
No. Bailey’s handles Wood-Mizer’s systems side only: the WM industrial headrigs, sawmill systems, machine centers and material handling. Wood-Mizer’s portable sawmills are not part of our range, so for those contact Wood-Mizer directly.
Which Wood-Mizer edgers and resaws can I get through Bailey’s?
Board edgers: the EG300, EG350, EG400, EG800, EA1000 and EA3000 (the EA models are automated optimizing edgers). Horizontal resaws: the HR250 Super, HR300, HR500, HR700, HR1000, HR5500 and HR6000. Also the MR200, MR250, MR3000 and MR6000 multirips and gang saws and the TVS, TVSHD, TVSHD Eco and TV6000 twin vertical saws. Each runs standalone or as part of a line.
Edgers and resawsHow do the WM2500, WM4500 and WM5500 differ?
All three are electric horizontal band headrigs for logs up to about 40 to 41 in, as published by Wood-Mizer. The WM2500 (30 HP) runs from a standalone operator console with a debarker as standard. The WM4500 (30 HP) is Wood-Mizer’s flagship, run from an enclosed cab with touchscreen setworks and a built-in board return. The WM5500 (50 HP) is a twin-rail wideband headrig with PLC setworks and a blade width chosen at order, from 2 in up to 5 in. Wood-Mizer lists the WM5500 as the successor to its WB2000 for large-log lines.
Compare the WM headrigsWhere do I get blades and parts for these machines?
Ask a specialist when you plan the machine. Blades, sharpening and spare parts depend on the model and the blade width you choose. For example, Wood-Mizer lists no sharpener or setter for blades wider than 3 in, which matters on the wideband WM5500 and HR6000. We go through blade supply and parts for your configuration before you order.
How does quoting work?
Send the form or call 1-888-465-8227 with your logs, species, target output, current setup and site power. A specialist works through the Wood-Mizer machines and options that fit, and you get a written quotation that lists the configuration and what is included. Prices depend on the configuration, so we don’t publish a price list.
What power do Wood-Mizer industrial machines need?
They are electric. Wood-Mizer lists the WM2500 and WM4500 at 30 HP and the WM5500 at 50 HP, and its machine centers from 10 HP per resaw head up to 2 × 100 HP on the MR6000; hydraulics, conveyors and other machines add to that. Motors this size normally need three-phase service. Some of Wood-Mizer’s US pages, including the HR700 resaw and the EG300 and EG400 edgers, list only a European 400 V 50 Hz supply, so confirm North American power with a specialist before you choose.
Is financing available?
Bailey’s offers equipment financing. See the financing page for current options, and ask a specialist whether the Wood-Mizer configuration you are quoted qualifies.
FinancingPlan your Wood-Mizer equipment with a specialist
Tell us about your logs, the output you want and the site. Change the equipment choice if you're after a system, a machine center or handling rather than a headrig.
