Wood-Mizer edgers, resaws and multirip saws

Machine centers that add capacity behind your headrig: EG and EA board edgers, HR band resaws, MR multirip and gang saws, and TVS twin vertical saws for small logs, sized to your logs, your products and your power.

Talk to a specialist 1-888-465-8227

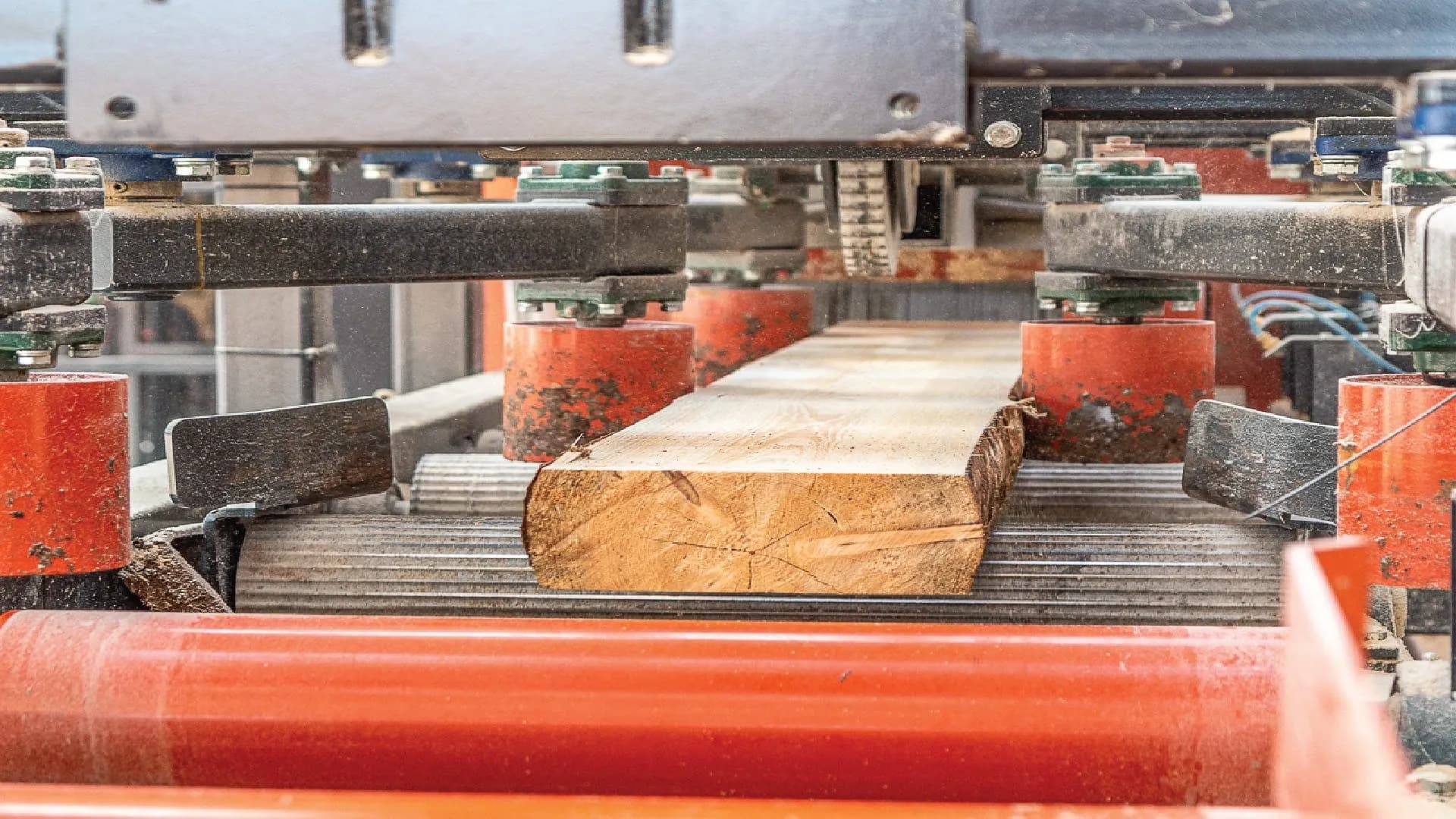

A cant feeding into a Wood-Mizer MR3000 dual-arbor multirip on its roller infeed

Bailey's is a Wood-Mizer dealer for industrial systems.

Which machine do I need?

A machine center takes one job off the headrig so it can keep opening logs. Start with the work that holds your headrig up today.

Flitches come off the headrig with bark on the edgesBoard edgerSaws the waney edges off and squares flitches into boards of a set width.6 models
Cants and thick boards are piling up behind the headrigResawSplits cants and boards into thinner stock. More heads take more boards off in each pass.7 models
You cut the same board widths from cants all dayMultirip or gang sawRips a cant into several boards in one pass with a row of circular blades.4 models
You saw mostly small logs, from about 4 to 18 inTwin vertical sawTakes two sides off a small log in one pass, breaking it down into a cant fast.4 models

Board edgers

6 models

A board edger takes the flitches and waney boards off the headrig, saws the bark edges off and squares them to width, so the headrig keeps opening logs instead of edging. Wood-Mizer’s EG edgers are set by hand or with setworks; its EA edgers scan each board and optimize it for volume and value.

Wood-Mizer EG and EA edgers

From Wood-Mizer’s systems range

EG300
Twin-blade edger that converts to a 5-blade multirip
Power
25 HP (18.6 kW) electric^‡
Material width
21 in
Material thickness
2.36 in (60 mm)
Blades
2 standard, up to 5; 13.75 in (350 mm)
Feed
Up to 65 ft/min, 4 powered rollers^*
EG350
Edger and gang saw in one
Power
30 HP electric
Material width
1.5–21.5 in (40–550 mm); cut up to 16.5 in (420 mm)
Material thickness
5/8–4 in (16–100 mm)
Blades
2–5, 15-3/4 in (400 mm)
Feed
0–82 ft/min (0–25 m/min)
EG400
Heavy-duty edging behind an industrial headrig
Power
30 HP (22 kW) electric^‡
Material width
Material up to 36 in; cut width 3–28 in (76 mm–0.72 m)
Material thickness
4 in (100 mm)
Blades
2 centered, 16 in (400 mm)
Feed
44 ft/min at 4 in, 78 at 2 in, 111 at 1 in
EG800
Edging boards from resaws or vertical saws
Power
40, 50, 60 or 75 HP electric
Material width
Not published
Material thickness
4 in (100 mm)^*
Blades
4, 14-3/4 in (375 mm)
Feed
1–60 m/min (spec table)^*
EA1000
Scanned, optimized edging for hardwood mills
Power
30 HP (22 kW) or 40 HP (30 kW) electric
Material width
Not published
Material thickness
Not published
Blades
2 centered, 17-1/2 in (450 mm), servo-set
Feed
260–450 ft/min
EA3000
Faster optimizing edger, in-line or transverse scan
Power
40 HP (30 kW) or 60 HP (45 kW) electric
Material width
Not published
Material thickness
3 in (75 mm)
Blades
2 centered, 17-1/2 in (450 mm), servo-set
Feed
500–820 ft/min (spec table)^*

Board edgers: published specifications compared
Model	Power	Material width	Material thickness	Blades	Feed
Wood-Mizer EG and EA edgersFrom Wood-Mizer’s systems range
EG300Twin-blade edger that converts to a 5-blade multirip	25 HP (18.6 kW) electric^‡	21 in	2.36 in (60 mm)	2 standard, up to 5; 13.75 in (350 mm)	Up to 65 ft/min, 4 powered rollers^*
EG350Edger and gang saw in one	30 HP electric	1.5–21.5 in (40–550 mm); cut up to 16.5 in (420 mm)	5/8–4 in (16–100 mm)	2–5, 15-3/4 in (400 mm)	0–82 ft/min (0–25 m/min)
EG400Heavy-duty edging behind an industrial headrig	30 HP (22 kW) electric^‡	Material up to 36 in; cut width 3–28 in (76 mm–0.72 m)	4 in (100 mm)	2 centered, 16 in (400 mm)	44 ft/min at 4 in, 78 at 2 in, 111 at 1 in
EG800Edging boards from resaws or vertical saws	40, 50, 60 or 75 HP electric	Not published	4 in (100 mm)^*	4, 14-3/4 in (375 mm)	1–60 m/min (spec table)^*
EA1000Scanned, optimized edging for hardwood mills	30 HP (22 kW) or 40 HP (30 kW) electric	Not published	Not published	2 centered, 17-1/2 in (450 mm), servo-set	260–450 ft/min
EA3000Faster optimizing edger, in-line or transverse scan	40 HP (30 kW) or 60 HP (45 kW) electric	Not published	3 in (75 mm)	2 centered, 17-1/2 in (450 mm), servo-set	500–820 ft/min (spec table)^*

Specifications as published by Wood-Mizer; confirm your configuration with a specialist.

* Wood-Mizer’s own page gives more than one figure here (summary, spec table or text). We show the spec-table value; the machine’s note below says what differs. Text Wood-Mizer copied from other models is never used.

‡ Wood-Mizer’s US page lists only a European 400 V 50 Hz supply. Confirm North American power with a specialist.

Material width: Wood-Mizer publishes the widest flitch or material the edger takes.

Wood-Mizer EG300 Multirip Board Edger
Made for: Twin-blade edger that converts to a 5-blade multirip
Specs and details
A twin-blade board edger with setworks that converts to a five-blade multirip with Wood-Mizer’s blade kit, standalone or in a line.
- Wood-Mizer’s US page lists only a European 400 V 50 Hz supply; North American power must be confirmed with a specialist.
Get a quote on the EG300
Wood-Mizer EG350 Multirip Board Edger
Made for: Edger and gang saw in one
Specs and details
An edger and gang saw in one: two 15-3/4 in blades for edging, or up to five on a spacer sleeve in gang-saw mode.
Get a quote on the EG350
Wood-Mizer EG400 Industrial Twin Blade Board Edger
Made for: Heavy-duty edging behind an industrial headrig
Specs and details
A heavy-duty twin-blade edger for use behind an industrial headrig, with feed speed set by material thickness and two lasers standard.
- Wood-Mizer’s US page lists only a European 400 V 50 Hz supply; North American power must be confirmed with a specialist.
Get a quote on the EG400
Wood-Mizer EG800 Board Edger
Made for: Edging boards from resaws or vertical saws
Specs and details
A manual board edger and gang saw for industrial mills, edging boards from resaws or vertical saws, with a wide arbor that takes multiple blades.
Options
Tailers, remote control, setworks, sawdust belt conveyor, extra roller tables, lasers
- Summary and text give feed up to 425 ft/min and 4-1/4 in thickness; the spec table is used here.
Get a quote on the EG800
Wood-Mizer EA1000 Automated Edger
Made for: Scanned, optimized edging for hardwood mills
Specs and details
A vision-optimized automated edger for hardwood mills: each board is scanned, optimized for volume and value, aligned and sawn, with a manual mode as fallback.
Production rate
20 boards/min average, as published
Min width of cut
1.5 in (40 mm)
Get a quote on the EA1000
Wood-Mizer EA3000 Automated Edger
Made for: Faster optimizing edger, in-line or transverse scan
Specs and details
A faster optimizing edger with optical scanning, hook-stops and two decoupled servo-set blades, with in-line or transverse scanning.
Production rate
1–25 boards/min average, as published
- Part of Wood-Mizer’s page describes another model; that text is not used here.
Get a quote on the EA3000

Band resaws

7 models

A horizontal band resaw splits cants and thick boards into thinner stock with a thin band blade, so the headrig only has to open the log and square it. Each extra head takes another board off in the same pass, which is how a multi-head resaw raises output. Wood-Mizer’s HR resaws run from a single head to modular multi-head machines.

Wood-Mizer HR horizontal resaws

From Wood-Mizer’s systems range

HR250 Super
Compact twin-blade resaw for lumber and pallet boards
Heads
2, stacked
Power
25 HP (18.6 kW) 3-phase, 230 V or 460 V / 60 Hz
Max cant width
16 in wide × 12 in (305 mm) high
Cant height
Not published
Feed
0–90 ft/min, rubber belt
HR300
Single head with an 8° tilting head
Heads
1, tilts 0–8°
Power
10, 20 or 25 HP electric
Max cant width
Not published
Cant height
0.4–10 in (10–250 mm)
Feed
0–100 ft/min
HR500
Entry modular multi-head, one to six heads
Heads
1–6, tilt 0–8°
Power
10 or 15 HP electric per head
Max cant width
12-3/4 in (0.32 m)
Cant height
0.4–15.75 in (10–400 mm)
Feed
0–65 ft/min
HR700
Large-capacity modular, 2, 4 or 6 heads
Heads
2, 4 or 6
Power
20 or 30 HP electric per head^‡
Max cant width
Not published
Cant height
1/4–15.75 in (6–400 mm)
Feed
0–65 ft/min
HR1000
High-end modular multi-head on a spiked chain bed
Heads
Modular, 1–8 as listed^*
Power
25 HP electric per head (as listed)^*
Max cant width
Not published
Cant height
12 in (305 mm)
Feed
0–100 ft/min
HR5500
High throughput on narrowband or 3 in blades
Heads
Single, twin or multi-head
Power
30 HP (22 kW) electric (spec table)^*
Max cant width
Not published
Cant height
5/8–11 in (15–290 mm)
Feed
Up to 130 ft/min^*
HR6000
Wideband resaw with servo sizing
Heads
Single, twin or multi-head
Power
60 HP (45 kW) or 75 HP (55 kW) electric
Max cant width
18-1/8 in (0.46 m)
Cant height
5/8–13 in (15–330 mm)
Feed
Not published

Band resaws: published specifications compared
Model	Heads	Power	Max cant width	Cant height	Feed
Wood-Mizer HR horizontal resawsFrom Wood-Mizer’s systems range
HR250 SuperCompact twin-blade resaw for lumber and pallet boards	2, stacked	25 HP (18.6 kW) 3-phase, 230 V or 460 V / 60 Hz	16 in wide × 12 in (305 mm) high	Not published	0–90 ft/min, rubber belt
HR300Single head with an 8° tilting head	1, tilts 0–8°	10, 20 or 25 HP electric	Not published	0.4–10 in (10–250 mm)	0–100 ft/min
HR500Entry modular multi-head, one to six heads	1–6, tilt 0–8°	10 or 15 HP electric per head	12-3/4 in (0.32 m)	0.4–15.75 in (10–400 mm)	0–65 ft/min
HR700Large-capacity modular, 2, 4 or 6 heads	2, 4 or 6	20 or 30 HP electric per head^‡	Not published	1/4–15.75 in (6–400 mm)	0–65 ft/min
HR1000High-end modular multi-head on a spiked chain bed	Modular, 1–8 as listed^*	25 HP electric per head (as listed)^*	Not published	12 in (305 mm)	0–100 ft/min
HR5500High throughput on narrowband or 3 in blades	Single, twin or multi-head	30 HP (22 kW) electric (spec table)^*	Not published	5/8–11 in (15–290 mm)	Up to 130 ft/min^*
HR6000Wideband resaw with servo sizing	Single, twin or multi-head	60 HP (45 kW) or 75 HP (55 kW) electric	18-1/8 in (0.46 m)	5/8–13 in (15–330 mm)	Not published

Specifications as published by Wood-Mizer; confirm your configuration with a specialist.

‡ Wood-Mizer’s US page lists only a European 400 V 50 Hz supply. Confirm North American power with a specialist.

Wood-Mizer HR250 Super Horizontal Resaw
Made for: Compact twin-blade resaw for lumber and pallet boards
Specs and details
A compact twin-blade horizontal resaw (Made in the USA, per Wood-Mizer) that resaws lumber and pallet boards into two or three pieces per pass.
Footprint
95-3/8 in × 107-5/8 in; ships on a pallet
Get a quote on the HR250 Super
Wood-Mizer HR300 Horizontal Resaw
Made for: Single head with an 8° tilting head
Specs and details
A heavy-duty single-head band resaw with an 8° tilting head, steel belt conveyor and variable feed.
- Part of Wood-Mizer’s page describes another model; that text is not used here.
Get a quote on the HR300
Wood-Mizer HR500 Horizontal Resaw
Made for: Entry modular multi-head, one to six heads
Specs and details
An entry-level modular multi-head resaw, one to six heads, for pallet boards, siding, flooring and fencing.
Get a quote on the HR500
Wood-Mizer HR700 Horizontal Resaw
Made for: Large-capacity modular, 2, 4 or 6 heads
Specs and details
A large-capacity modular multi-head resaw built from two-head modules, with a twin-track steel belt conveyor and spiked top-roller hold-downs.
Cant length
Unlimited; extra tables for material over 12 ft
- Wood-Mizer’s US page lists only a European 400 V 50 Hz supply; North American power must be confirmed with a specialist.
Get a quote on the HR700
Wood-Mizer HR1000 Horizontal Resaw
Made for: High-end modular multi-head on a spiked chain bed
Specs and details
A high-end modular multi-head resaw with a spiked chain bed and powered feed rollers, and an optional merry-go-round return for automated cant breakdown.
Shop air
80–125 psi at 5 cfm
- Wood-Mizer’s text gives both one-to-eight and one-to-six heads, and a power table based on a 15 kW motor.
Get a quote on the HR1000
Wood-Mizer HR5500 Resaw
Made for: High throughput on narrowband or 3 in blades
Specs and details
A high-throughput single, twin or multi-head horizontal resaw on a high-strain column, for narrowband or 3 in performance blades.
- Summary tile shows 50 HP and 0–72 ft/min; the spec table is used here.
- Part of Wood-Mizer’s page describes another model; that text is not used here.
Get a quote on the HR5500
Wood-Mizer HR6000 Wideband Twin Head Resaw
Made for: Wideband resaw with servo sizing
Specs and details
A wideband single or twin-head resaw with an electric servo sizing system for fast size changes and no pre-sorting of sideboards.
- Blade width is given as 6 in in the table and 4–5 in in the text; feed speed is published three different ways. Confirm with a specialist.
- Part of Wood-Mizer’s page describes another model; that text is not used here.
Get a quote on the HR6000

Multirip and gang saws

4 models

A multirip, or gang saw, rips a cant into several boards in one pass with a row of circular blades on one or two arbors. It suits mills that cut the same widths in volume, such as pallet stock and dimension lumber, and usually sits behind a headrig or a twin vertical saw.

Wood-Mizer MR multirips and gang saws

From Wood-Mizer’s systems range

MR200
Double-arbor gang saw for pallet and lumber
Power
2 × 40 HP (30 kW) electric
Material width
21 in (540 mm)
Material thickness
1-1/4–8 in (30–200 mm)
Blades
Up to 10 per arbor (depends on thickness and feed), 200–315 mm diameter^*
Feed
5–50 ft/min (1.5–15 m/min)
MR250
Single-pass ripping, standalone or in a line
Power
Twin motors from 2 × 30 HP to 2 × 75 HP (22–55 kW)
Material width
25.5 in (650 mm)
Material thickness
1-1/2–9-7/8 in (38–250 mm)
Blades
Up to 16 per arbor, 11-7/8–15-3/4 in (300–400 mm)
Feed
6.5–82 ft/min (2–25 m/min)
MR3000
Dual-arbor multirip with an optical scanner
Power
2 × 60 HP (45 kW) electric^*
Material width
Published inconsistently^*
Material thickness
6 in (160 mm)
Blades
12-1/2 in (320 mm), 0.2 in (5 mm) kerf
Feed
Variable, up to 130 ft/min^*
MR6000
Wood-Mizer’s largest-capacity gang rip saw
Power
2 × 100 HP (2 × 75 kW)
Material width
Published three ways^*
Material thickness
10 in (250 mm)
Blades
16 in (400 mm), 0.2 in (5 mm) kerf
Feed
Not published

Multirip and gang saws: published specifications compared
Model	Power	Material width	Material thickness	Blades	Feed
Wood-Mizer MR multirips and gang sawsFrom Wood-Mizer’s systems range
MR200Double-arbor gang saw for pallet and lumber	2 × 40 HP (30 kW) electric	21 in (540 mm)	1-1/4–8 in (30–200 mm)	Up to 10 per arbor (depends on thickness and feed), 200–315 mm diameter^*	5–50 ft/min (1.5–15 m/min)
MR250Single-pass ripping, standalone or in a line	Twin motors from 2 × 30 HP to 2 × 75 HP (22–55 kW)	25.5 in (650 mm)	1-1/2–9-7/8 in (38–250 mm)	Up to 16 per arbor, 11-7/8–15-3/4 in (300–400 mm)	6.5–82 ft/min (2–25 m/min)
MR3000Dual-arbor multirip with an optical scanner	2 × 60 HP (45 kW) electric^*	Published inconsistently^*	6 in (160 mm)	12-1/2 in (320 mm), 0.2 in (5 mm) kerf	Variable, up to 130 ft/min^*
MR6000Wood-Mizer’s largest-capacity gang rip saw	2 × 100 HP (2 × 75 kW)	Published three ways^*	10 in (250 mm)	16 in (400 mm), 0.2 in (5 mm) kerf	Not published

Specifications as published by Wood-Mizer; confirm your configuration with a specialist.

Wood-Mizer MR200 Gang Saw
Made for: Double-arbor gang saw for pallet and lumber
Specs and details
A double-arbor gang rip saw that rips cants into boards for pallet and lumber operations, with height-adjustable arbors and an optional built-in chipper.
- Headline text says up to 12 blades per arbor; the spec table says 10, which is used here.
Get a quote on the MR200
Wood-Mizer MR250 Double Arbor Multirip
Made for: Single-pass ripping, standalone or in a line
Specs and details
An industrial double-arbor multirip for single-pass ripping, standalone or in a line, with electric blade adjustment and 8 powered feed rollers.
- Blades and spacers are specified to the order and not included by default.
Get a quote on the MR250
Wood-Mizer MR3000 Multirip Edger
Made for: Dual-arbor multirip with an optical scanner
Specs and details
A dual-arbor multirip with an optical material scanner and pneumatic hold-downs, which Wood-Mizer calls the workhorse of its sawmills.
- Summary tile says 120 HP (both motors) and 33–98 ft/min; the spec table is used here. Throat width is published inconsistently and is not shown.
Get a quote on the MR3000
Wood-Mizer MR6000 Multirip Edger
Made for: Wood-Mizer’s largest-capacity gang rip saw
Specs and details
Wood-Mizer’s largest-capacity gang rip saw, for demanding industrial and pallet mills, with scanning and optimizing feed options.
Feed motor
20 HP (15 kW)
- Width is published as 34-1/4 in, 36 in and 60 in in different places, so none is shown; confirm with a specialist.
Get a quote on the MR6000

Twin vertical band sawmills

4 models

A twin vertical saw takes two sides off a small log in one pass with two upright band blades, turning it into a cant fast. It is the front end of a small-log or pallet line, usually feeding a multirip or gang saw, rather than an add-on behind a headrig.

Wood-Mizer TVS and TV twin vertical saws

From Wood-Mizer’s systems range

TVS
Two sides off small logs and slabs in one pass
Power
2 × 10 HP or 2 × 15 HP electric
Log diameter
4 in (10 cm)
Log length
3–12 ft (0.9–3.6 m)
Width of cut
2.75–10 in (70–250 mm)
Blade width
1-1/4–1-1/2 in (32–38 mm)
Feed
Not published
TVSHD
Heavy-duty primary breakdown for small logs
Power
25 HP (18.5 kW) electric, 480 V / 60 Hz 3-phase
Log diameter
6–16 in
Log length
4–12 ft (to 3.6 m)
Width of cut
3–9.85 in (75–250 mm)
Blade width
Not published
Feed
0–80 ft/min, sharp-chain feed
TVSHD Eco
Simplified twin vertical with continuous feed
Power
25 HP (18.6 kW) electric
Log diameter
Not published
Log length
Not published
Width of cut
3–10 in (75–250 mm)
Blade width
2 in (50 mm)
Feed
0–80 ft/min, sharp-chain feed
TV6000
Heaviest twin vertical, ahead of a gang saw
Power
60 HP (45 kW) or 75 HP (55 kW) electric
Log diameter
4.75–17.75 in (12–45 cm)
Log length
45 in to 14 ft 9 in (to 4.5 m) as listed^*
Width of cut
Not published
Blade width
Not published
Feed
Up to 120 ft/min (motor and blading dependent)^*

Twin vertical band sawmills: published specifications compared
Model	Power	Log diameter	Log length	Width of cut	Blade width	Feed
Wood-Mizer TVS and TV twin vertical sawsFrom Wood-Mizer’s systems range
TVSTwo sides off small logs and slabs in one pass	2 × 10 HP or 2 × 15 HP electric	4 in (10 cm)	3–12 ft (0.9–3.6 m)	2.75–10 in (70–250 mm)	1-1/4–1-1/2 in (32–38 mm)	Not published
TVSHDHeavy-duty primary breakdown for small logs	25 HP (18.5 kW) electric, 480 V / 60 Hz 3-phase	6–16 in	4–12 ft (to 3.6 m)	3–9.85 in (75–250 mm)	Not published	0–80 ft/min, sharp-chain feed
TVSHD EcoSimplified twin vertical with continuous feed	25 HP (18.6 kW) electric	Not published	Not published	3–10 in (75–250 mm)	2 in (50 mm)	0–80 ft/min, sharp-chain feed
TV6000Heaviest twin vertical, ahead of a gang saw	60 HP (45 kW) or 75 HP (55 kW) electric	4.75–17.75 in (12–45 cm)	45 in to 14 ft 9 in (to 4.5 m) as listed^*	Not published	Not published	Up to 120 ft/min (motor and blading dependent)^*

Specifications as published by Wood-Mizer; confirm your configuration with a specialist.

The TVS lists a minimum log diameter (4 in); the others list a range.

Wood-Mizer TVS Twin Vertical Saw
Made for: Two sides off small logs and slabs in one pass
Specs and details
Removes two sides of a log, cant or slab in one pass. Developed for Wood-Mizer’s Smart Log Processing line.
Get a quote on the TVS
Wood-Mizer TVSHD Twin Vertical Sawmill, Heavy Duty
Made for: Heavy-duty primary breakdown for small logs
Specs and details
A heavy-duty twin vertical primary breakdown saw for small logs and pallet lines, with an incline log deck and automated log turner as standard.
Get a quote on the TVSHD
Wood-Mizer TVSHD Eco Twin Vertical Saw
Made for: Simplified twin vertical with continuous feed
Specs and details
A simplified twin vertical saw for high-throughput small-log processing, with continuous log feeding and a 2 in blade.
- No log diameter or length limits are published.
Get a quote on the TVSHD Eco
Wood-Mizer TV6000 Wideband Twin Vertical Saw
Made for: Heaviest twin vertical, ahead of a gang saw
Specs and details
Wood-Mizer’s heaviest primary-breakdown twin vertical saw, for high throughput of small to medium logs ahead of a gang saw or multirip.
- Log length is also given as 6.6 m and as 12, 16 or 20 ft in other Wood-Mizer material.
Get a quote on the TV6000

A machine center is one part of the line

An edger or resaw only adds output if cants and boards reach it and leave it without hand work. Plan it with the headrig in front and the handling around it.

Questions about edgers and resaws

Anything else, call a specialist at 1-888-465-8227.

What is the difference between a board edger and a resaw?

An edger works on a board’s width: it saws the waney, bark-covered edges off a flitch and squares it into a board. A resaw works on thickness: it splits a cant or thick board into thinner boards with a horizontal band blade. Many mills run both behind the headrig, the resaw taking cants and the edger taking flitches and sideboards.

Is a gang saw the same as a multirip?

Mostly, yes. Both rip a cant into several boards in one pass with a row of circular blades on one or two arbors. Wood-Mizer uses both names: it calls the MR200 a gang saw and the MR3000 and MR6000 multirip edgers. Some board edgers, such as the EG300 and EG350, also take extra blades and work as a small gang saw.

Can I add a resaw or edger to my existing headrig line?

Usually, yes. Wood-Mizer says its resaws and edgers run standalone or in a line, and that its material handling can be retrofitted to existing lines. What decides the fit is the size of the cants and flitches your headrig makes, the space and conveyors between machines, and your power. Tell us what you run now and where the bottleneck is.

Log decks and conveyors

What power do edgers and resaws need?

They are electric, and motors this size normally need three-phase service. Wood-Mizer lists, for example, 25 HP for the HR250 Super (230 V or 460 V, 60 Hz), 30 HP for the EG400, two 40 HP motors for the MR200 and two 100 HP motors for the MR6000; multi-head resaws add a motor for each head. Wood-Mizer’s US pages for the EG300, EG400 and HR700 list only a European 400 V 50 Hz supply, so confirm North American power with a specialist before you plan your electrical service.

What blades do these machines use, and who sharpens them?

Resaws and twin vertical saws run band blades; edgers, multirips and gang saws run circular blades. Wood-Mizer sells band blades for its HR resaws and lists the circular blade size each edger and multirip takes. Length, width and tooth profile vary by model, so ask a specialist which blades suit your machine and wood. Wood-Mizer’s listed band sharpeners and setters take blades up to 3 in wide; wider blades, such as the HR6000’s wideband blades, are outside them, so plan how those will be serviced.

How does quoting work?

Send the form or call 1-888-465-8227 with what you run now, your logs and species, the products you cut, the output you want and your site power. A specialist works out which machine center fits and how it connects to your line, then sends a written quotation that lists the machines, options and what is included. Heads, motors and options are chosen per order, so we quote each setup rather than publish a price list.

Is financing available?

Bailey’s offers equipment financing. See the financing page for current options, and ask a specialist whether the machine center you are quoted qualifies.

Financing

Get a quote on a machine center

Tell us what your headrig makes now and what you want out of the line. The more we know, the closer the first quotation is to the machine you need.

Fields marked optional can be skipped. Everything else helps the specialist quote the right setup.

First name

Last name

Phone

ZIP / postal code

Country

Company or mill name (optional)

What are you interested in?

Model (optional)

How would you describe your operation? (optional)

Typical log diameter (optional)

Main species (optional)

Target daily output (optional)

What do you run now? (optional)

Power available on site (optional)

When are you looking to buy?

Interested in financing? (optional)

YesNo

Best way to reach you (optional)

Phone callEmailText message

Anything else we should know? (optional)

Text me about my quote. By checking this box you agree to receive text messages from Bailey's at the number above. Message and data rates may apply; reply STOP to opt out. Not required to buy.

We use your details to answer this request. See Bailey's privacy policy.

Edgers & ResawsWhich machine Edgers Resaws Multirips Vertical saws FAQ

Financing 1-888-465-8227 Get a Quote

Call Get a Quote

Wood-Mizer edgers, resaws and multirip saws

Which machine do I need?

Board edgers

Wood-Mizer EG and EA edgers

Board edgers: the machines

Wood-Mizer EG300 Multirip Board Edger

Wood-Mizer EG350 Multirip Board Edger

Wood-Mizer EG400 Industrial Twin Blade Board Edger

Wood-Mizer EG800 Board Edger

Wood-Mizer EA1000 Automated Edger

Wood-Mizer EA3000 Automated Edger

Band resaws

Wood-Mizer HR horizontal resaws

Band resaws: the machines

Wood-Mizer HR250 Super Horizontal Resaw

Wood-Mizer HR300 Horizontal Resaw

Wood-Mizer HR500 Horizontal Resaw

Wood-Mizer HR700 Horizontal Resaw

Wood-Mizer HR1000 Horizontal Resaw

Wood-Mizer HR5500 Resaw

Wood-Mizer HR6000 Wideband Twin Head Resaw

Multirip and gang saws

Wood-Mizer MR multirips and gang saws

Multirip and gang saws: the machines

Wood-Mizer MR200 Gang Saw

Wood-Mizer MR250 Double Arbor Multirip

Wood-Mizer MR3000 Multirip Edger

Wood-Mizer MR6000 Multirip Edger

Twin vertical band sawmills

Wood-Mizer TVS and TV twin vertical saws

Twin vertical band sawmills: the machines

Wood-Mizer TVS Twin Vertical Saw

Wood-Mizer TVSHD Twin Vertical Sawmill, Heavy Duty

Wood-Mizer TVSHD Eco Twin Vertical Saw

Wood-Mizer TV6000 Wideband Twin Vertical Saw

A machine center is one part of the line

Questions about edgers and resaws

Get a quote on a machine center
