Portable sawmills that go to the log
Lucas Mill swing-blade sawmills from Bailey's, the sole Lucas Mill distributor for the U.S., Canada and Mexico. Five petrol models, with boards up to 10 × 20 in.
Lucas Mill reports more than 20,000 mills sold in over 100 countries since 1994.
Which Lucas Mill fits your logs?
Pick the work you have in mind. The drawing shows the biggest board that mill cuts, to scale against the rest of the lineup.
Biggest double-cut board per model, as published by Lucas Mill. Board size, not log diameter.
Recommended: 8-30
Lucas Mill 8-30
Lucas Mill’s most popular model, by Lucas Mill’s own account. A Kohler EFI engine with electric start, for sawyers who mill for others and need bigger boards.
- Power
- Kohler EFI V‑twin
- Standard cut length
- 20 ft (6.1 m)
One blade that cuts both ways

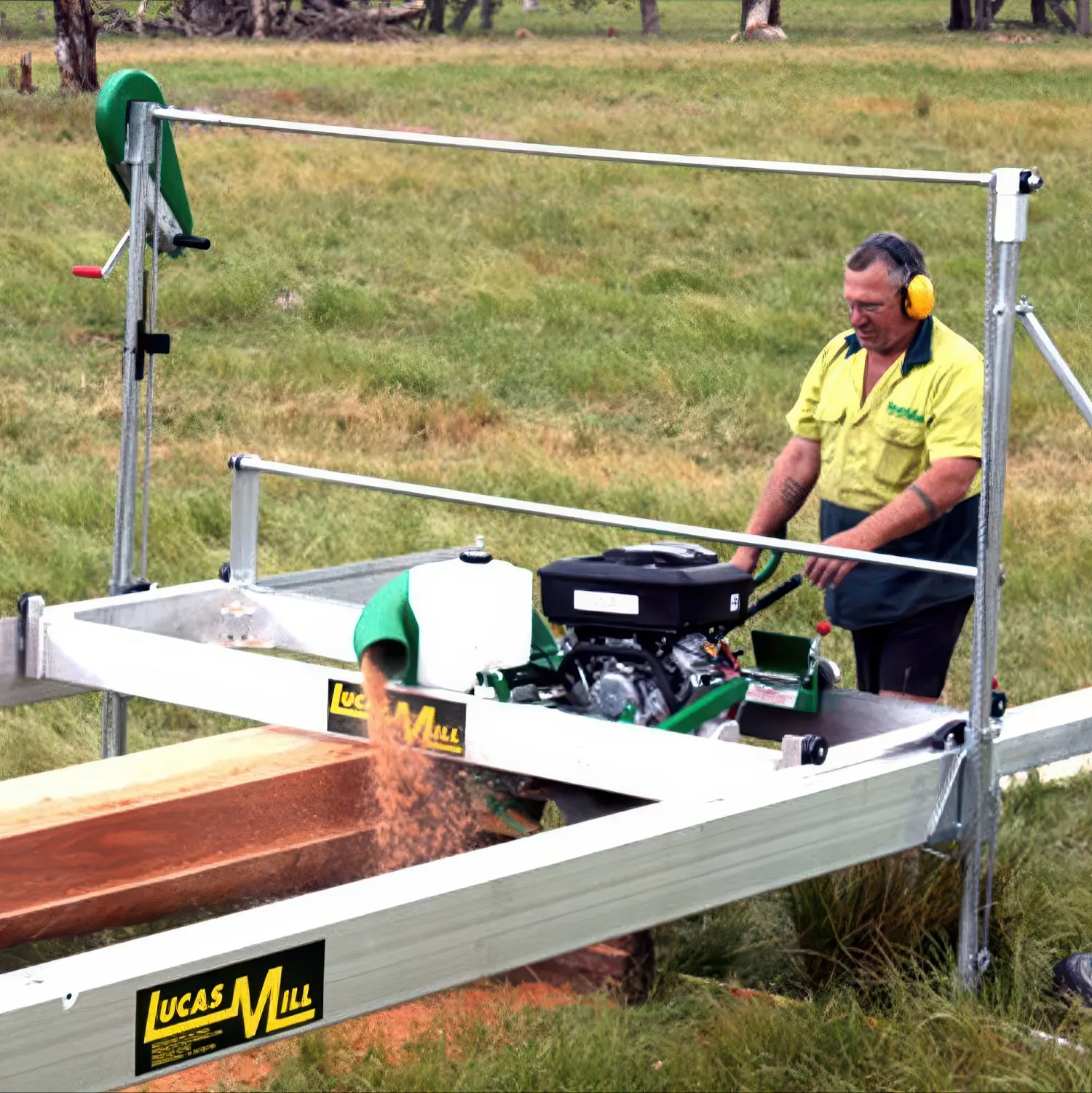

A swing-blade sawmill runs a single circular blade that pivots between vertical and horizontal. It saws boards straight off the log with no band to tension, track or swap out.
The blade is tungsten carbide tipped. The tips are sharpened as you go and can be replaced when they wear, and tips and sharpening gear (opens in a new tab) are on Bailey's main store.
Set the mill up over the log

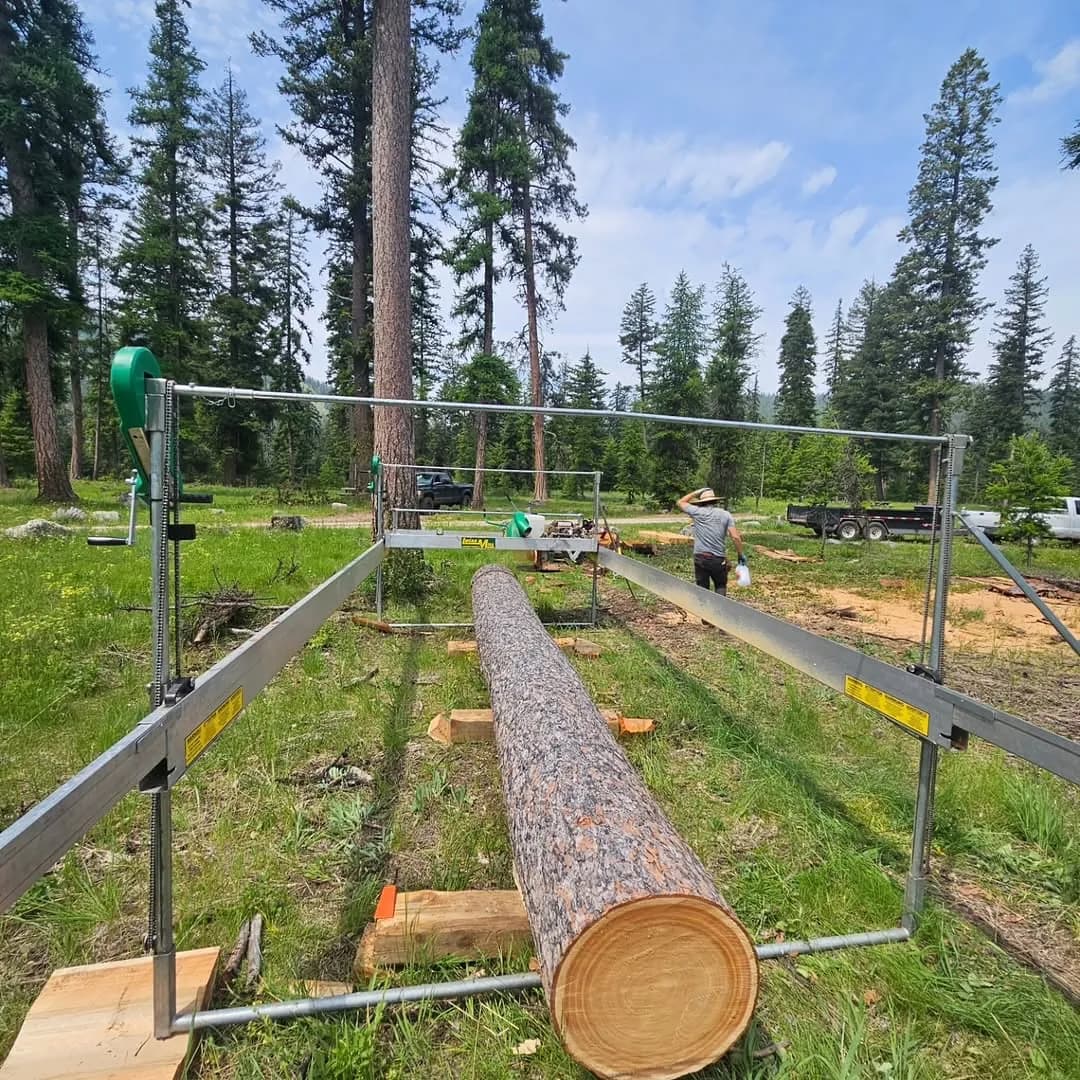

The tracks and end-frames stand around the log, on the ground or on simple supports. You take the mill to the timber instead of hauling logs to a mill.
Cut down, swing the blade, cut across
The circular blade makes the vertical cut, then swings 90° to make the horizontal cut that frees the board. The log is not turned between cuts.
Lift off a square-edged board
Each pass releases a sawn board or beam. Cutting from both sides, a double cut, gives boards twice the width of a single cut.
The Lucas Mill swing-blade lineup
Every model uses a 5-tooth carbide-tipped blade and takes the optional slabbing attachment. The Lucas Mill price list (PDF) covers every model.

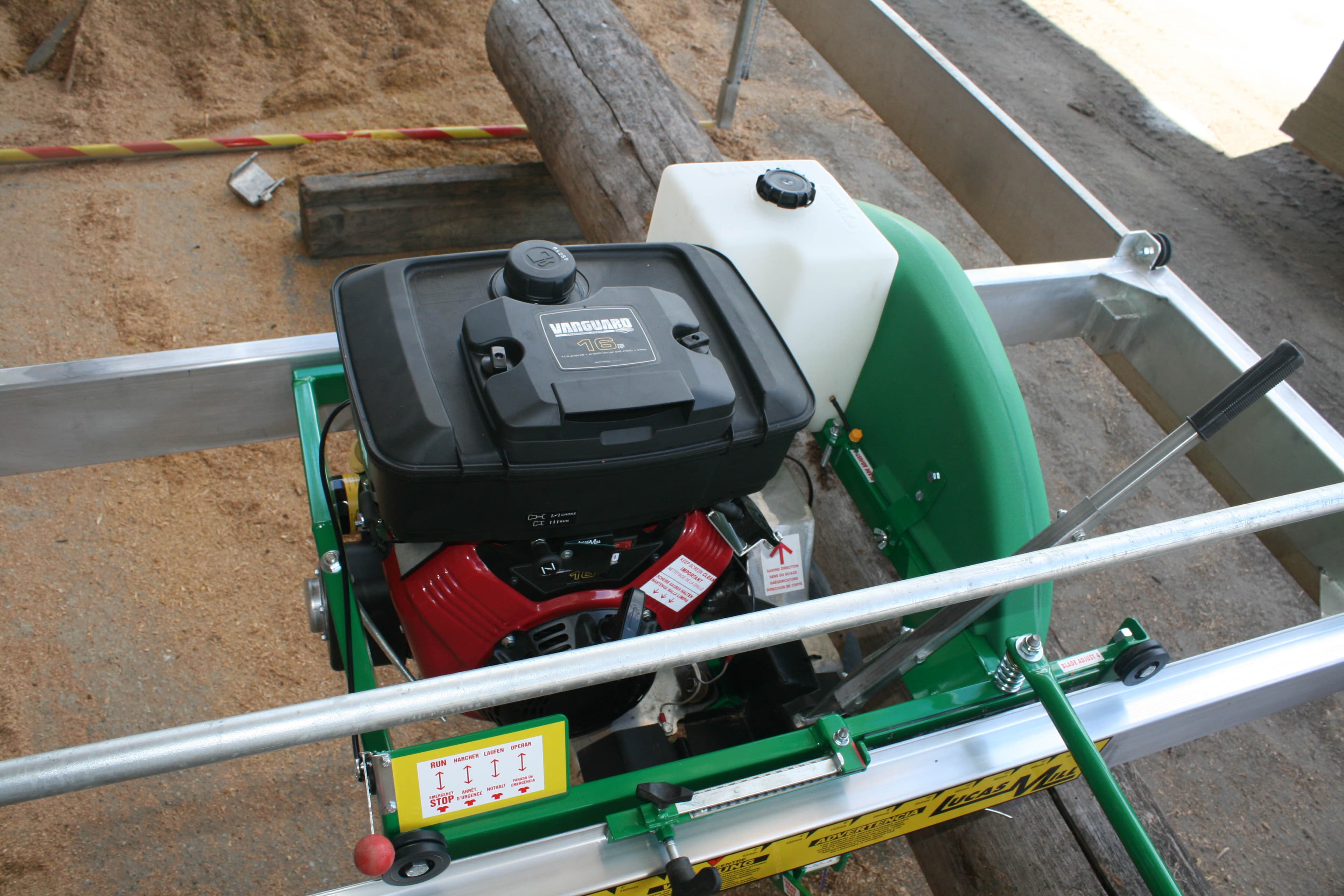

Lucas Mill 6-16
Made for: First mill, smaller logs
The lightest carriage in the lineup, for hobby farms, small woodlots and first-time sawyers. Manual start, with the side-winder and slabbing attachment as options. Cuts 14.5 ft as standard; 3 ft corner extensions, sold separately, take it to 20 ft.
- Power
- 16 HP Vanguard V‑twin
- Biggest board
- 6.3 × 12.6 in
- Standard cut
- 14.5 ft
- Carriage
- 260 lb (118 kg)
All specifications
- Start
- Manual start
- Single cut
- 6.3 × 6.3 in (160 mm)
- Board (metric)
- 160 × 320 mm
- Kerf
- 5 mm
- Side-winder
- Optional
- Slabbing attachment
- Optional
- Shipping weight
- 697 lb (316 kg)
- Shipping box
- 0.87 × 0.75 × 2.8 m
- Track package
- 0.3 × 0.2 × 6.1 m

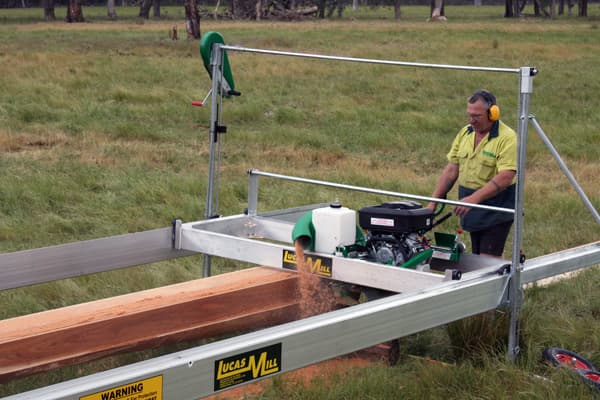

Lucas Mill 6-18
Made for: Build with your own timber
The same board size as the 6-16, with electric start, a standard side-shift winder for quicker moves between cuts, and a 20 ft standard cut length.
- Power
- 18 HP Vanguard V‑twin
- Biggest board
- 6.3 × 12.6 in
- Standard cut
- 20 ft (6.1 m)
- Carriage
- 289 lb (131 kg)
All specifications
- Start
- Electric and manual start
- Single cut
- 6.3 × 6.3 in (160 mm)
- Board (metric)
- 160 × 320 mm
- Kerf
- 5 mm
- Side-winder
- Standard
- Slabbing attachment
- Optional
- Shipping weight
- 825 lb (374 kg)
- Shipping box
- 0.87 × 0.75 × 2.8 m
- Track package
- 0.3 × 0.2 × 6.1 m

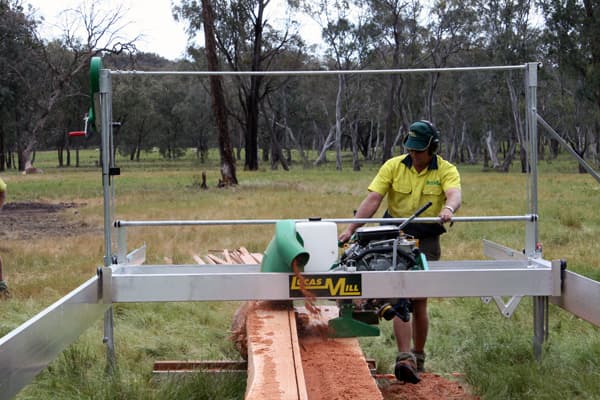

Lucas Mill 7-23
Made for: A step up in board size
More capacity than the Model 6 mills: single cuts to 7.9 in and boards up to 15.7 in wide, on a 23 HP Vanguard with electric start.
- Power
- 23 HP Vanguard V‑twin
- Biggest board
- 7.9 × 15.7 in
- Standard cut
- 20 ft (6.1 m)
- Carriage
- 315 lb (143 kg)
All specifications
- Start
- Electric and manual start
- Single cut
- 7.9 × 7.9 in (200 mm)
- Board (metric)
- 200 × 400 mm
- Kerf
- 5.3 mm
- Side-winder
- Standard
- Slabbing attachment
- Optional
- Shipping weight
- 882 lb (400 kg)
- Shipping box
- 1.03 × 0.75 × 2.8 m
- Track package
- 0.3 × 0.2 × 6.1 m

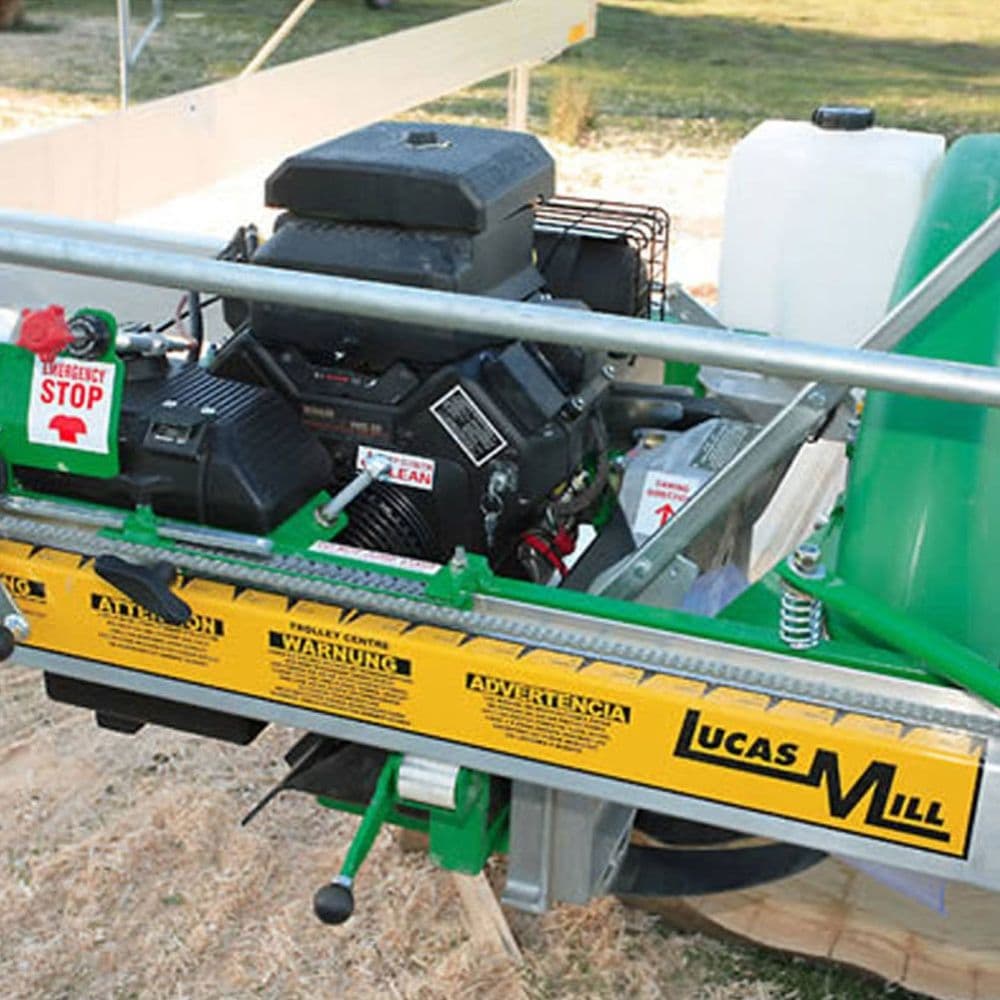

Lucas Mill 8-30
Made for: Mill for others
Lucas Mill’s most popular model, by Lucas Mill’s own account. A Kohler EFI engine with electric start, for sawyers who mill for others and need bigger boards.
- Power
- Kohler EFI V‑twin
- Biggest board
- 8.5 × 16.9 in
- Standard cut
- 20 ft (6.1 m)
- Carriage
- 370 lb (168 kg)
All specifications
- Start
- Electric start
- Single cut
- 8.5 × 8.5 in (215 mm)
- Board (metric)
- 215 × 430 mm
- Kerf
- 5.7 mm
- Side-winder
- Standard
- Slabbing attachment
- Optional
- Shipping weight
- 926 lb (420 kg)
- Shipping box
- 1.03 × 0.75 × 2.85 m
- Track package
- 0.3 × 0.2 × 6.1 m

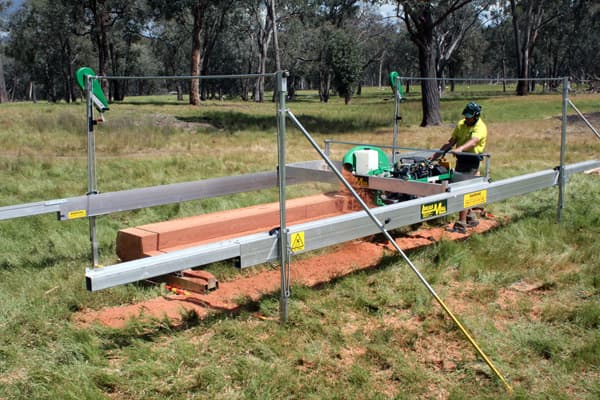

Lucas Mill 10-30
Made for: Small production
The biggest petrol swing-blade: 10 in single cuts and boards up to 20 in wide, for regular production of larger-dimension timber.
- Power
- Kohler EFI V‑twin
- Biggest board
- 10 × 20 in
- Standard cut
- 20 ft (6.1 m)
- Carriage
- 388 lb (176 kg)
All specifications
- Start
- Electric start
- Single cut
- 10 × 10 in (254 mm)
- Board (metric)
- 254 × 508 mm
- Kerf
- 6.1 mm
- Side-winder
- Standard
- Slabbing attachment
- Optional
- Shipping weight
- 948 lb (430 kg)
- Shipping box
- 1.03 × 0.75 × 2.85 m
- Track package
- 0.3 × 0.2 × 6.1 m
Every model side by side
Lucas Mill 6-16
- Power
- 16 HP Vanguard V‑twin
- Single cut
- 6.3 × 6.3 in
- Biggest board
- 6.3 × 12.6 in
- Standard cut
- 14.5 ft
- Kerf
- 5 mm
- Carriage
- 260 lb
- Shipping
- 697 lb
- Side-winder
- Optional
Lucas Mill 6-18
- Power
- 18 HP Vanguard V‑twin
- Single cut
- 6.3 × 6.3 in
- Biggest board
- 6.3 × 12.6 in
- Standard cut
- 20 ft
- Kerf
- 5 mm
- Carriage
- 289 lb
- Shipping
- 825 lb
- Side-winder
- Standard
Lucas Mill 7-23
- Power
- 23 HP Vanguard V‑twin
- Single cut
- 7.9 × 7.9 in
- Biggest board
- 7.9 × 15.7 in
- Standard cut
- 20 ft
- Kerf
- 5.3 mm
- Carriage
- 315 lb
- Shipping
- 882 lb
- Side-winder
- Standard
Lucas Mill 8-30
- Power
- Kohler EFI V‑twin
- Single cut
- 8.5 × 8.5 in
- Biggest board
- 8.5 × 16.9 in
- Standard cut
- 20 ft
- Kerf
- 5.7 mm
- Carriage
- 370 lb
- Shipping
- 926 lb
- Side-winder
- Standard
Lucas Mill 10-30
- Power
- Kohler EFI V‑twin
- Single cut
- 10 × 10 in
- Biggest board
- 10 × 20 in
- Standard cut
- 20 ft
- Kerf
- 6.1 mm
- Carriage
- 388 lb
- Shipping
- 948 lb
- Side-winder
- Standard
Specifications as published by Lucas Mill. Carriage weight excludes the tracks and end-frames. Ask a specialist to confirm the configuration for your order.
Lucas Mills at work with Bailey’s
Bailey’s own photos of Lucas Mills cutting, many from our demo days and shows. Come and watch one cut before you buy.

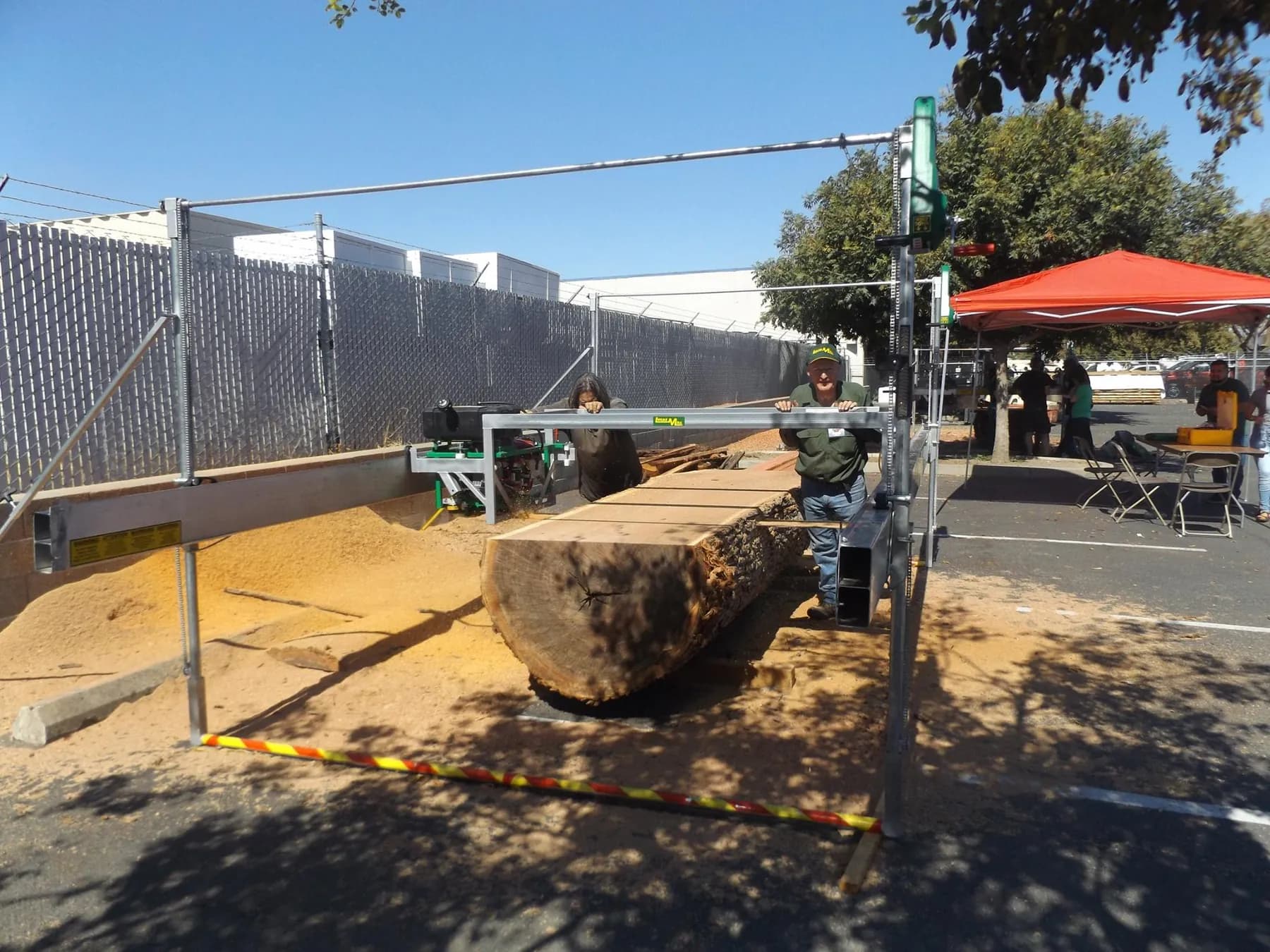

Demo day at Bailey’s

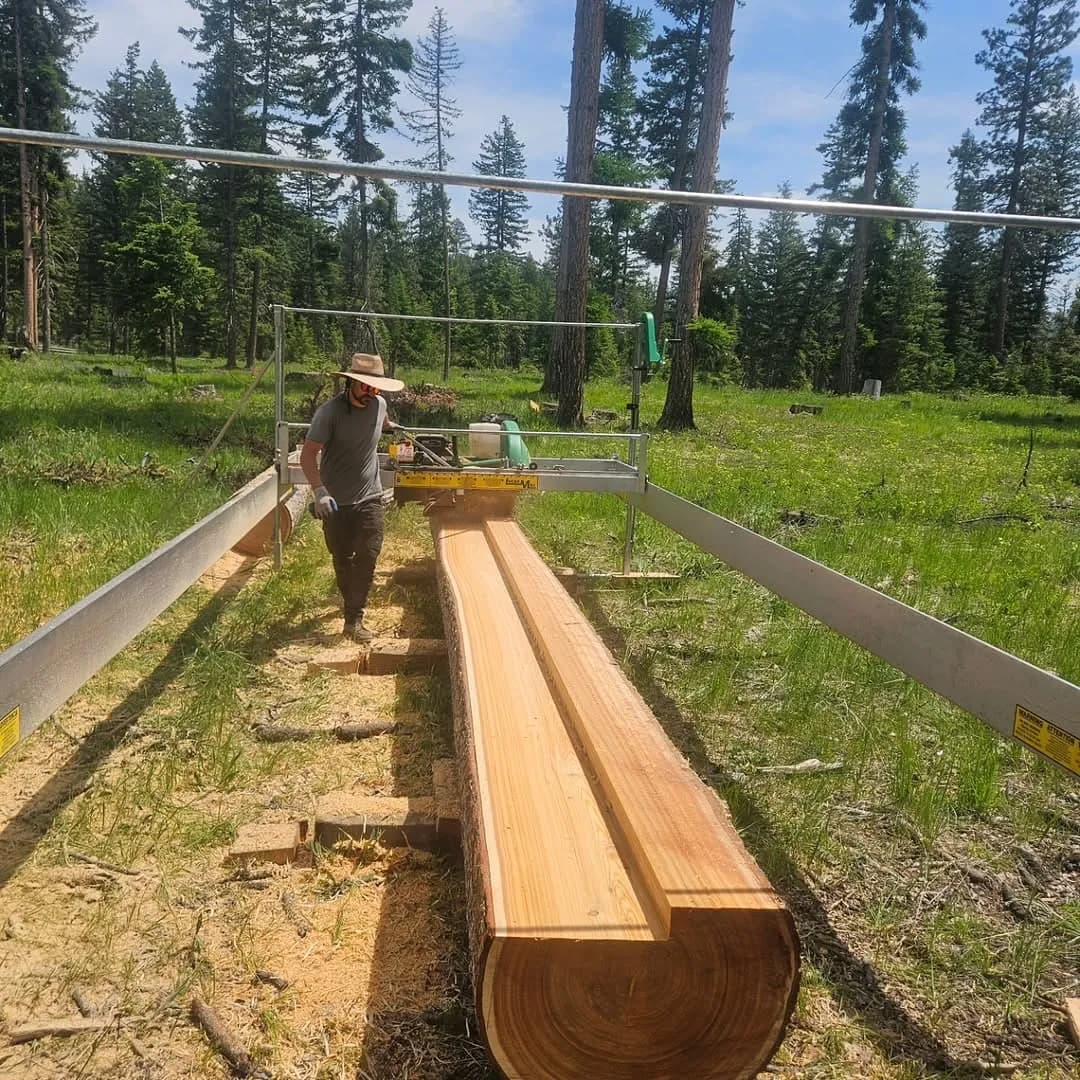

Milling a beam in a meadow Lucas Mills cutting

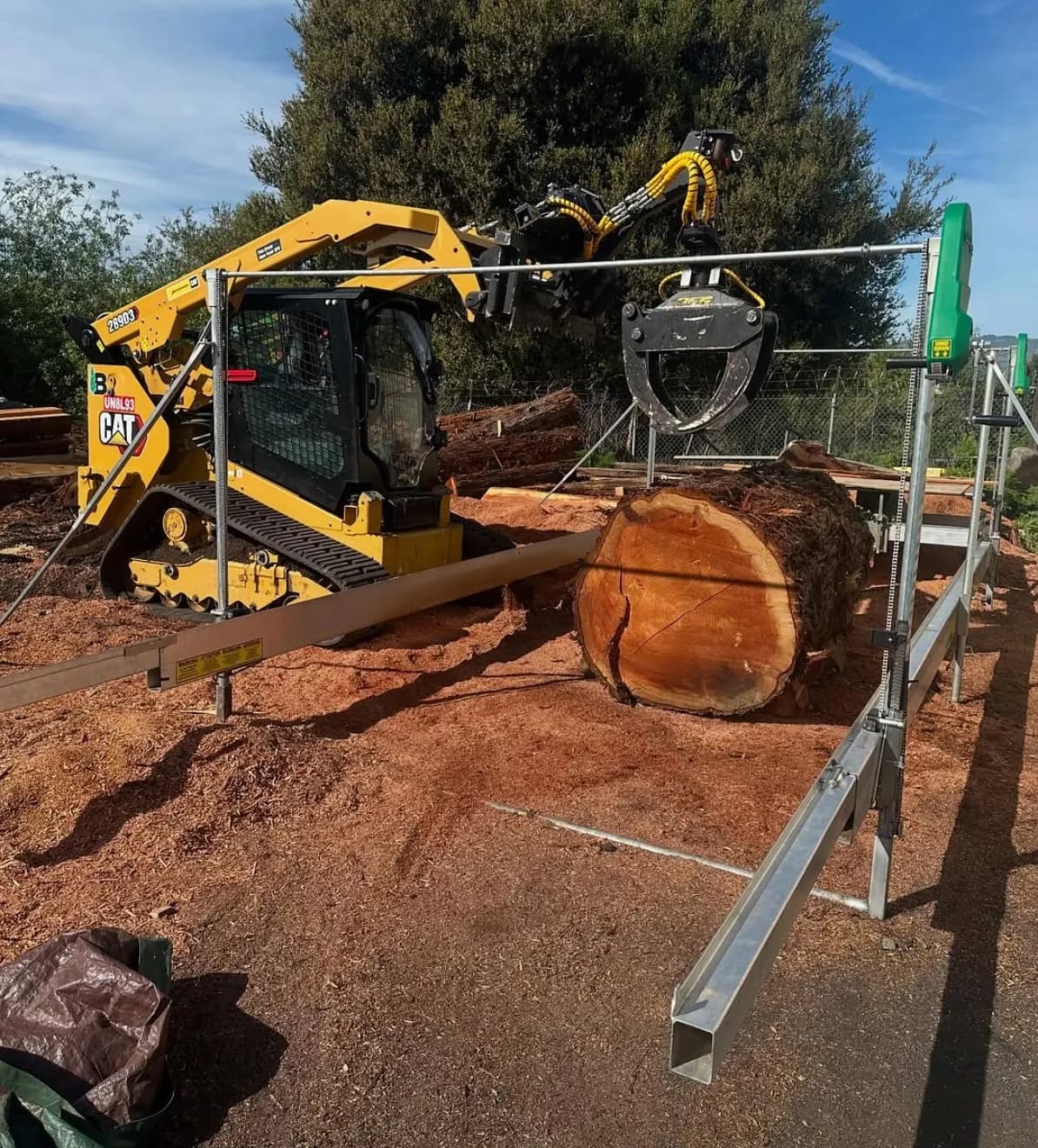

Loading a log onto the frame

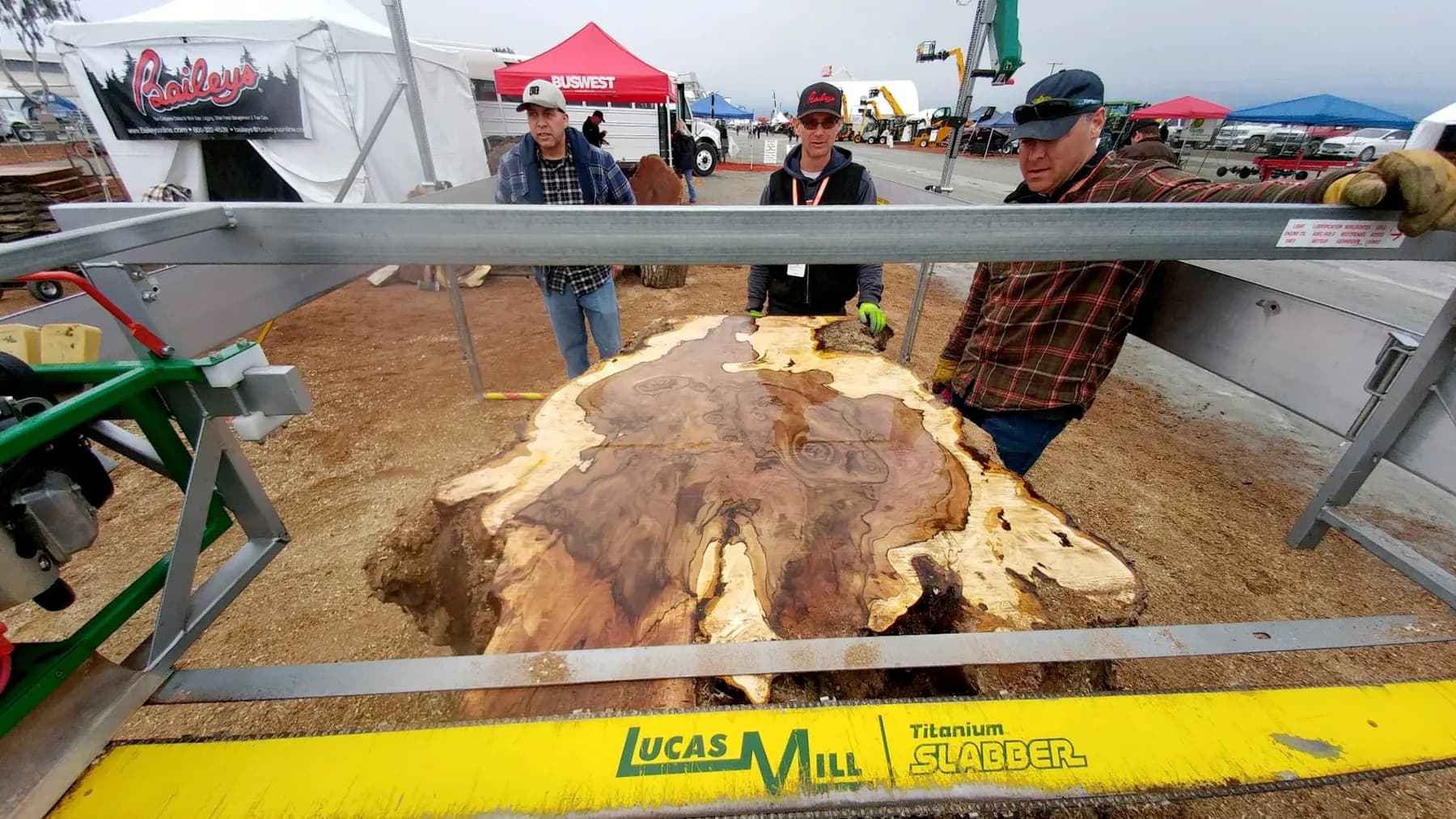

Slabbing a burl at a show

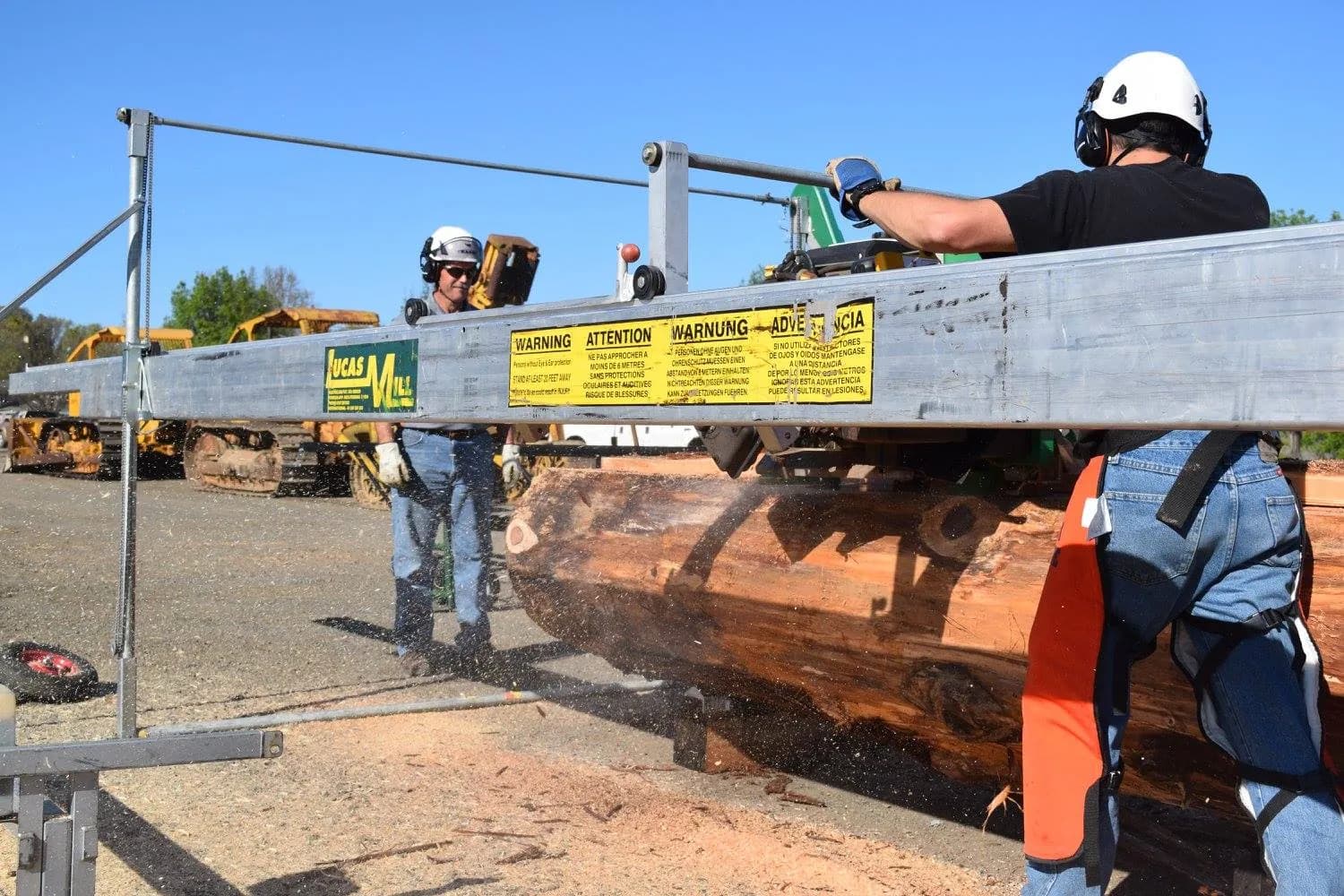

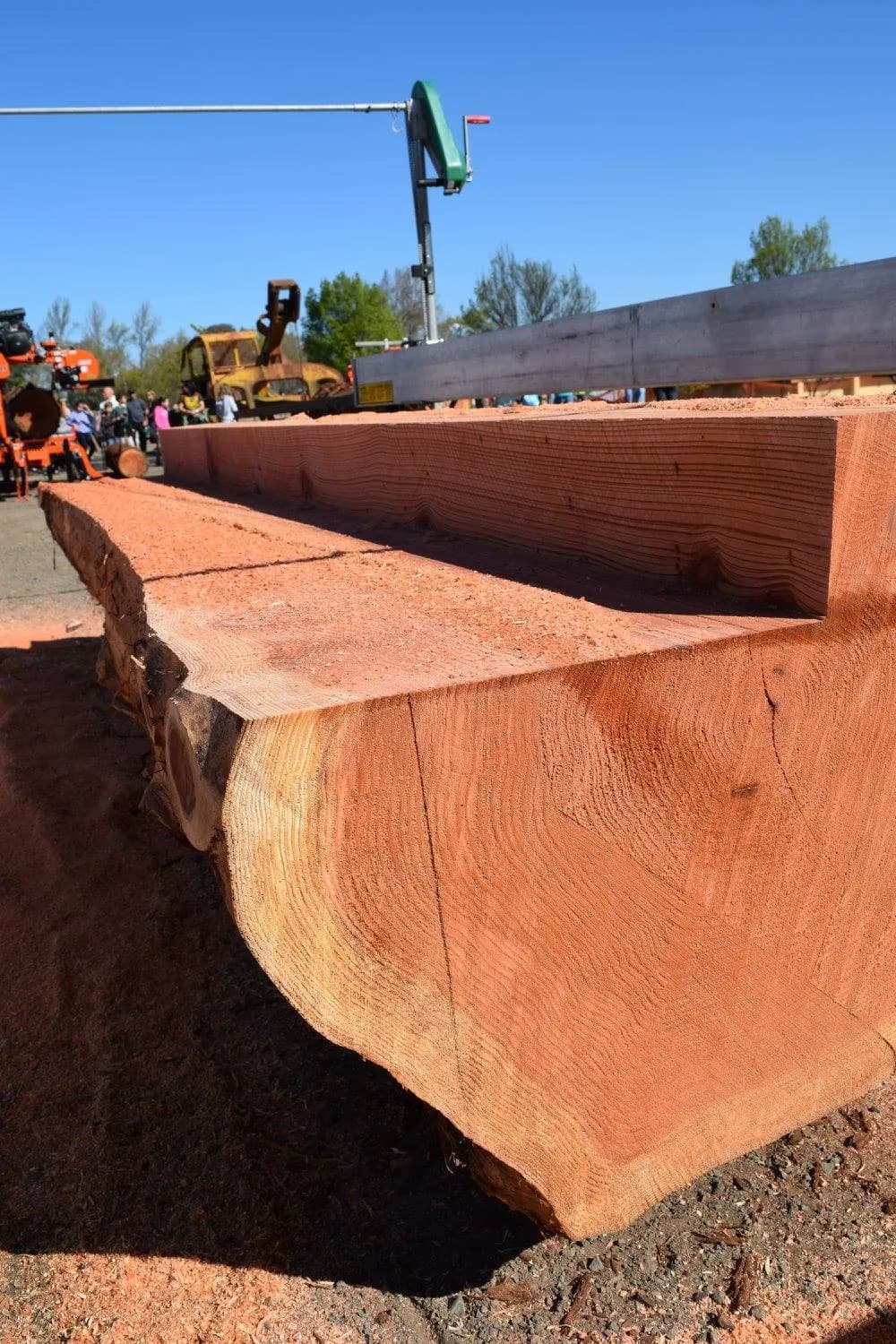

Fresh-sawn redwood beam

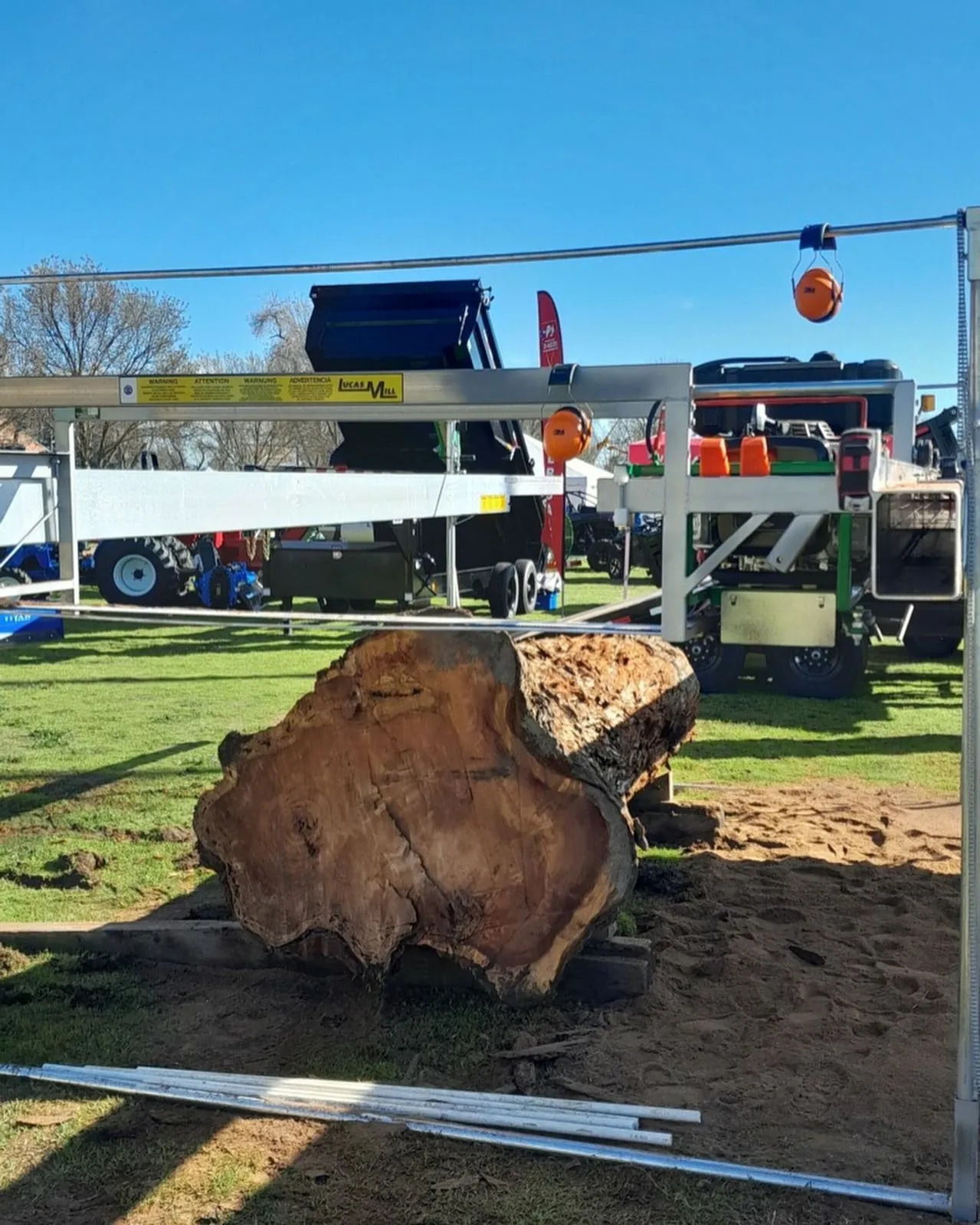

Burl log at an outdoor show
Why buy your Lucas Mill from Bailey’s?
Sole Lucas Mill distributor
Bailey’s is the sole Lucas Mill distributor for the United States, Canada and Mexico.
Help choosing, and after
Tell a specialist about your logs and the boards you want. We help with setup and keeping the mill cutting too.
Blades, tips and parts
Lucas Mill parts and accessories are on Bailey’s main store.
Shop Lucas Mill parts (opens in a new tab)
Warranty
Lucas Mill covers the machine. Engines are covered separately by the companies that make them.
- Lucas Mill machineEvery model
- Three-year limited warranty against faulty parts and workmanship
- Kohler EFI engines8-30, 10-30
- At least three years, from Kohler
- Vanguard engines6-16, 6-18, 7-23
- Three years, from Briggs & Stratton
As summarized by Lucas Mill. The written warranty for your machine and engine sets the full terms; a specialist can go through them with you.
Questions buyers ask
Anything else, call a specialist at 1-888-465-8227.
How much does a portable sawmill cost?
It depends on the model and the package: the board size you need and extras such as the slabbing attachment, track extensions or, on the 6-16, corner extensions. Current prices for each Lucas Mill are on Bailey’s main store, and financing is available. A specialist can quote the exact package you need.
Lucas Mill price list (PDF) (opens in a new tab)See current Lucas Mill prices (opens in a new tab)Financing options
Swing-blade or band sawmill: what is the difference?
A swing-blade sawmill like the Lucas Mill uses one circular blade that cuts vertically, then swings 90 degrees to cut horizontally and free the board, so the log never has to be turned. The mill frame is set up around the log where it lies. A band sawmill runs a thin continuous band around two wheels: it cuts a thinner kerf, but the band has to be tensioned and tracked, and the log is usually loaded onto the mill and turned to saw each face.
Which size portable sawmill do I need?
Start with the biggest board you want to cut. The 6-16 and 6-18 cut boards up to 6.3 × 12.6 in, the 7-23 up to 7.9 × 15.7 in, the 8-30 up to 8.5 × 16.9 in, and the 10-30 up to 10 × 20 in. Lucas Mill publishes board size rather than a maximum log diameter, because the mill sets up around the log. For very large or irregular logs, tell a specialist what you have.

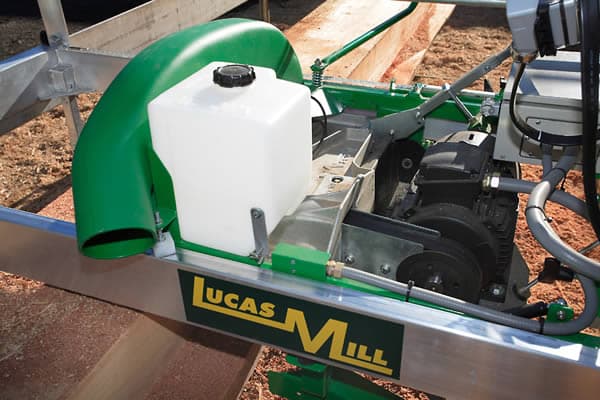

Does Bailey’s sell the electric Lucas Mills?
No. Lucas Mill’s electric models, the 8-15 and 10-15, run a 400 V, 3-phase, 60 Hz Lafert motor, which is not a common supply in the U.S., so Bailey’s no longer carries them. Every Lucas Mill Bailey’s sells is petrol powered.

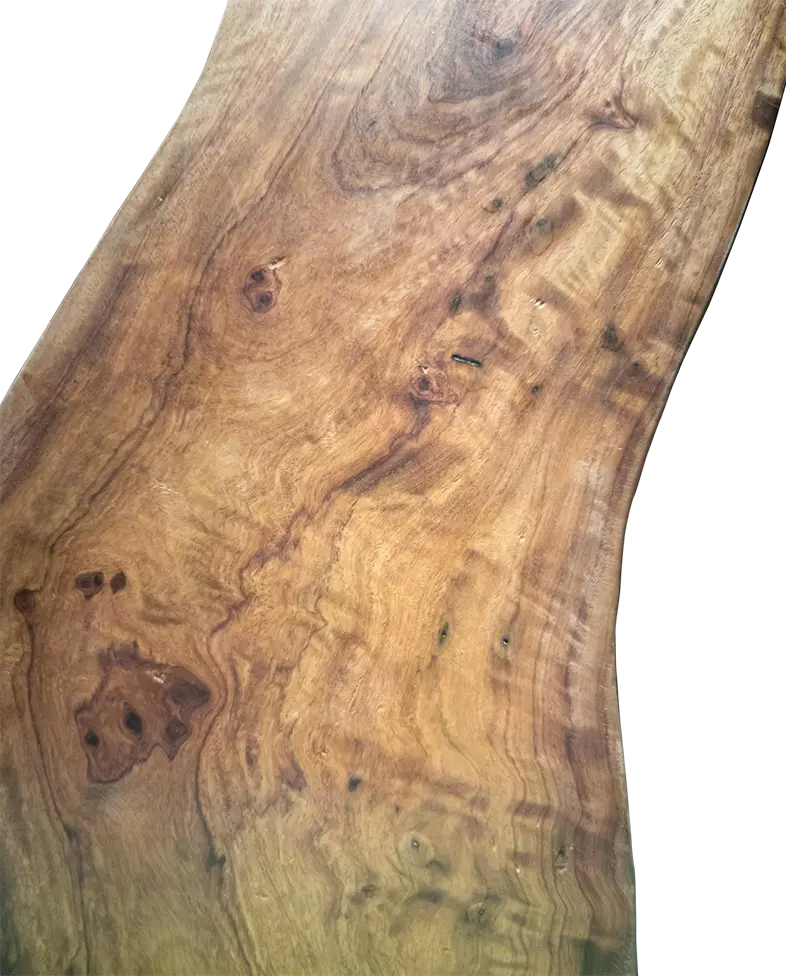

Can a portable sawmill cut slabs?
Yes. Every Lucas Mill swing-blade takes the optional slabbing attachment, which runs a slabbing bar from the mill’s own engine. For regular wide-slab work, Lucas Mill also makes the DSM23 slabbing mill and the DSSM Super Slabber, which cuts slabs up to 9 ft (2.7 m) wide.
Do the blades need sharpening?
Yes. The blade has tungsten carbide tips, and Lucas Mill supplies a sharpening kit (a mini grinder with a diamond wheel on a factory-set bracket) so you can sharpen the tips regularly on site. When the tips wear out, the blade is re-tipped. There is no band to tension or track.
How long a log can I mill?
The standard cut length is 20 ft (6.1 m) on every model except the 6-16, which cuts 14.5 ft as standard; 3 ft corner extensions, sold separately, take the 6-16 to 20 ft. Lucas Mill’s 2 m track extension kit gives 8 m (26 ft) on the 6.1 m track, and rail sets can be linked for longer logs.
What warranty comes with it?
Lucas Mill gives its machines a three-year limited warranty against faulty parts and workmanship. Engines are covered separately: Kohler EFI engines for at least three years from Kohler, and Vanguard engines for three years from Briggs & Stratton.
