Lucas Mill sawmills for sale

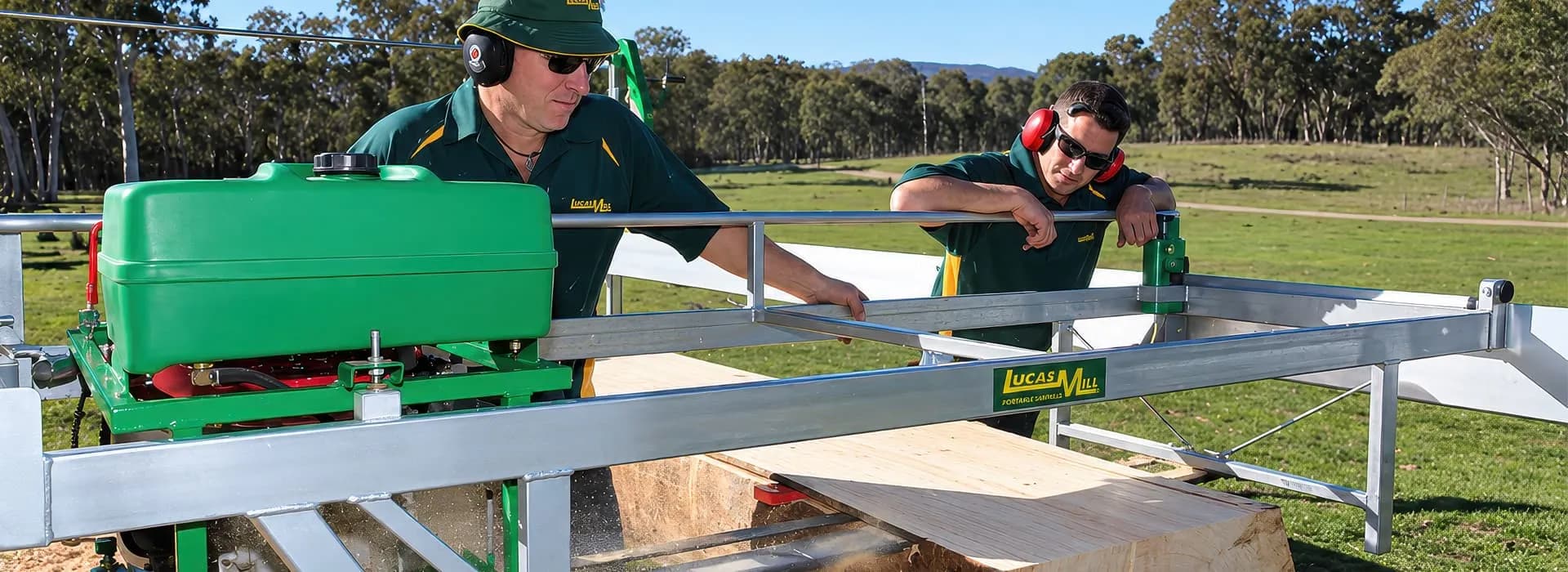

Swing-blade sawmills built in Australia since 1994. The mill sets up over the log and saws boards, beams and slabs right where the timber lies.
Bailey's is the sole Lucas Mill distributor for the United States, Canada and Mexico.
Lucas Mill models and prices
Five petrol swing-blade sawmills. Choose by the biggest board you want to cut; every model takes the optional slabbing attachment. Each model links to its current price, and the brochure covers every model, slabber and attachment.
Download the brochure & price listPDF (opens in a new tab)

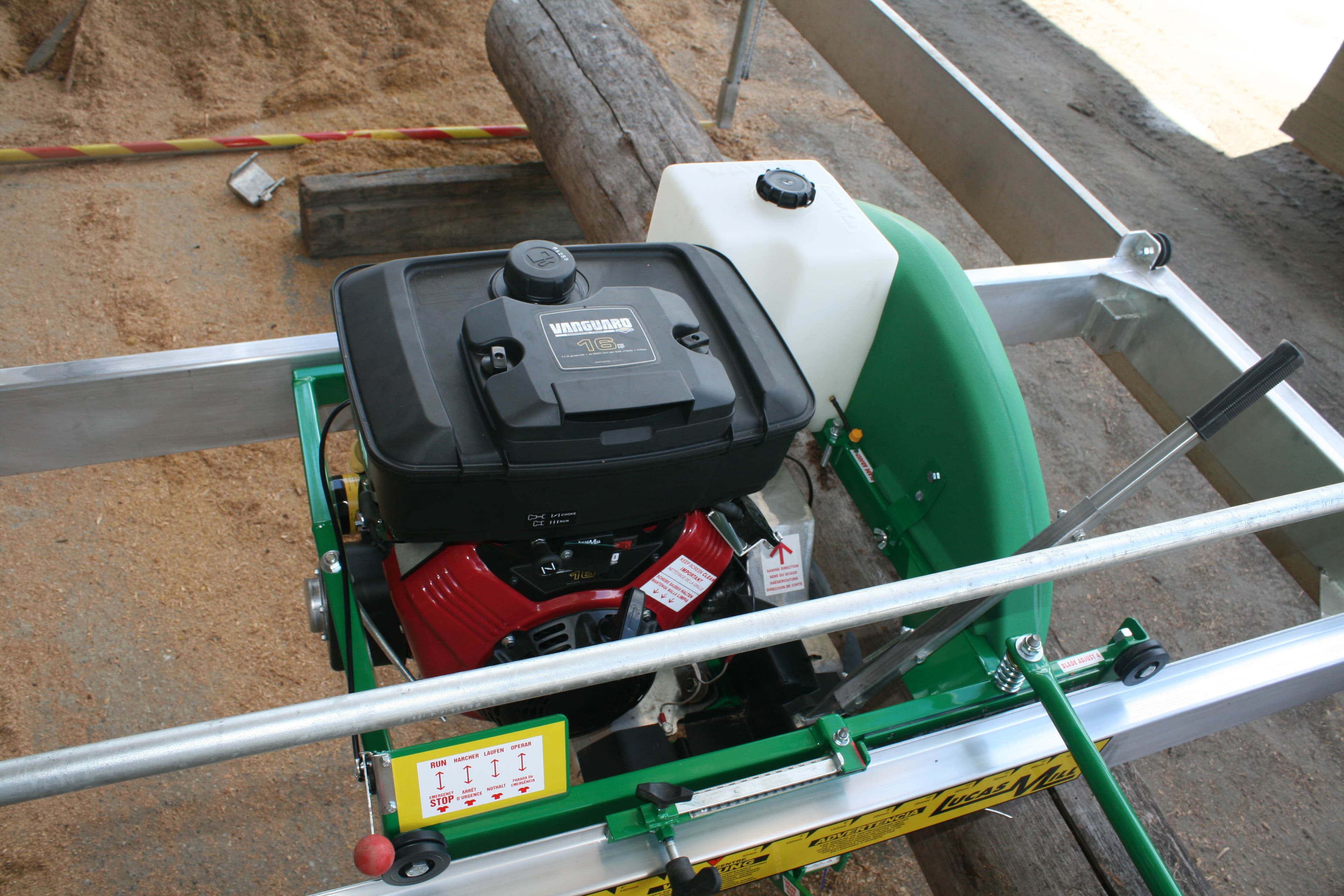

Lucas Mill 6-16
First mill, smaller logs
- Biggest board
- 6.3 × 12.6 in
- Single cut
- 6.3 × 6.3 in
- Power
- 16 HP Vanguard V‑twin
- Standard cut length
- 14.5 ft

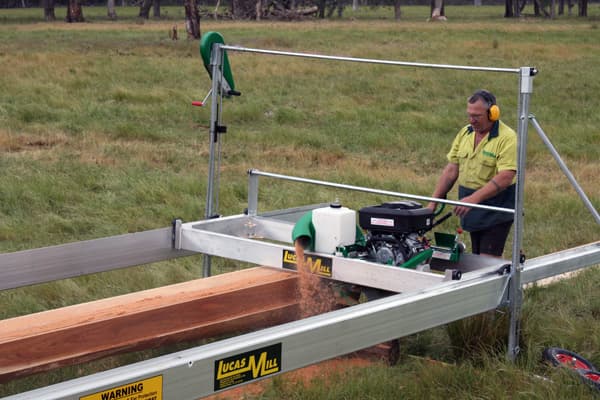

Lucas Mill 6-18
Build with your own timber
- Biggest board
- 6.3 × 12.6 in
- Single cut
- 6.3 × 6.3 in
- Power
- 18 HP Vanguard V‑twin
- Standard cut length
- 20 ft (6.1 m)

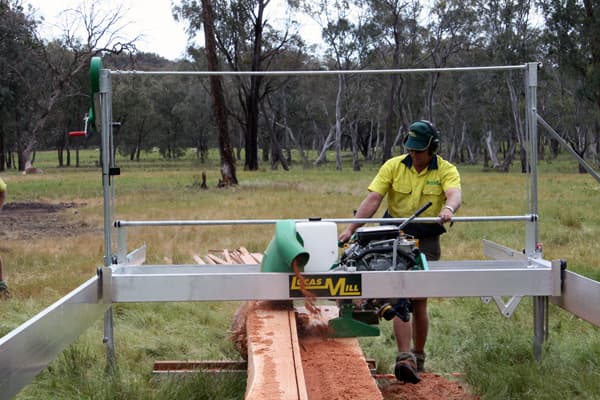

Lucas Mill 7-23
A step up in board size
- Biggest board
- 7.9 × 15.7 in
- Single cut
- 7.9 × 7.9 in
- Power
- 23 HP Vanguard V‑twin
- Standard cut length
- 20 ft (6.1 m)
Lucas Mill 8-30
Mill for others
- Biggest board
- 8.5 × 16.9 in
- Single cut
- 8.5 × 8.5 in
- Power
- Kohler EFI V‑twin
- Standard cut length
- 20 ft (6.1 m)

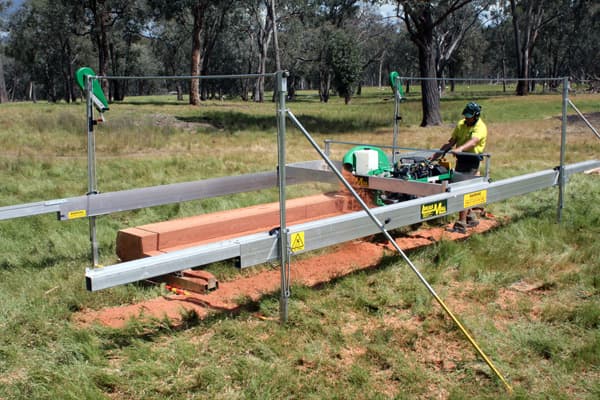

Lucas Mill 10-30
Small production
- Biggest board
- 10 × 20 in
- Single cut
- 10 × 10 in
- Power
- Kohler EFI V‑twin
- Standard cut length
- 20 ft (6.1 m)
Specifications as published by Lucas Mill. Board sizes are the biggest double-cut board, not a maximum log diameter. Prices are on Bailey's main store and change; a specialist can quote your full package.

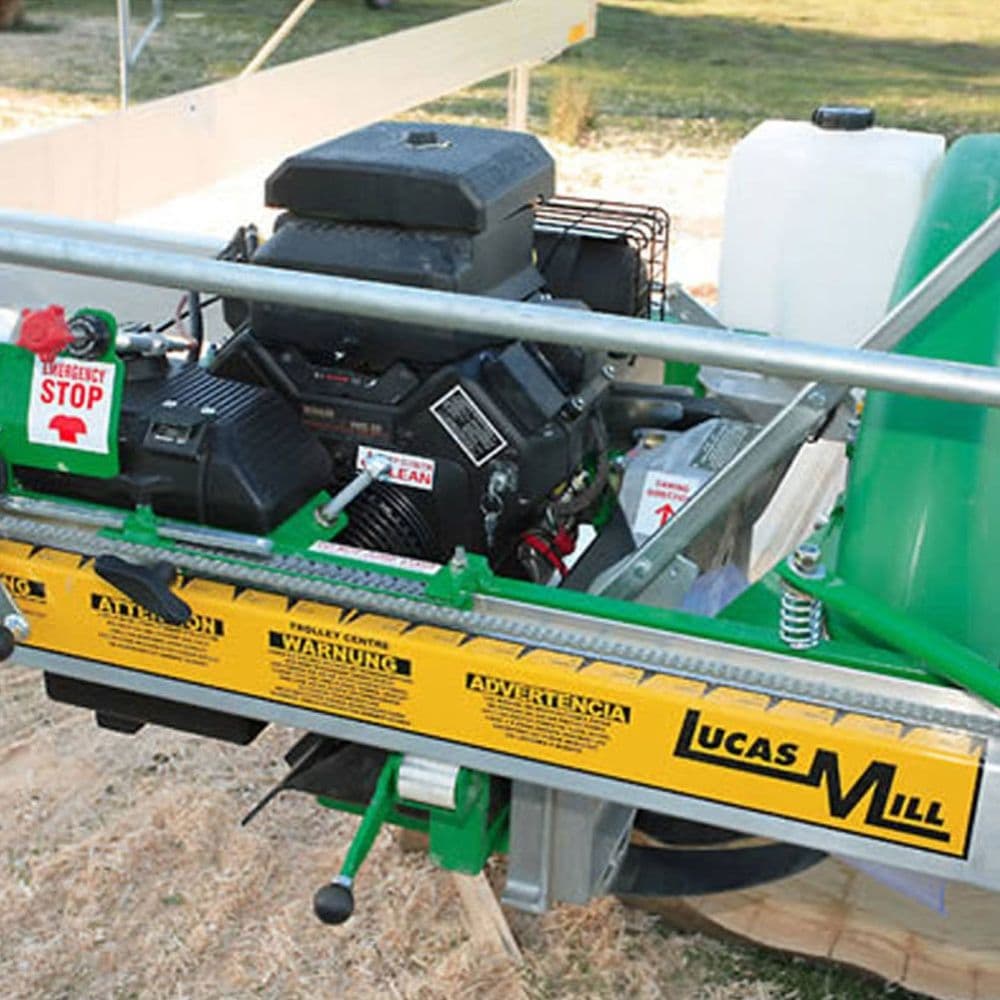

How a swing-blade sawmill works

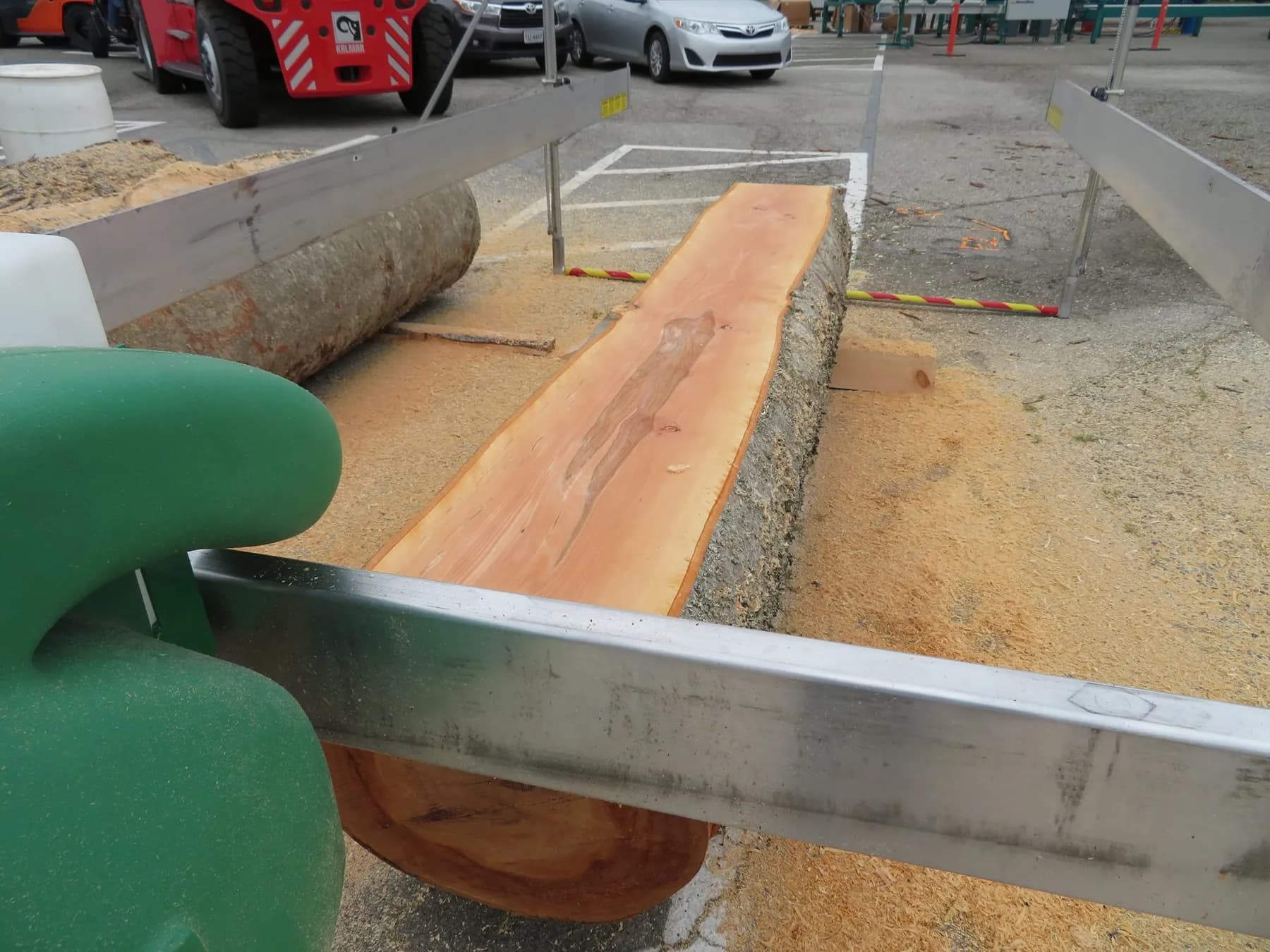

A Lucas Mill runs one circular blade on a carriage that travels along aluminum tracks above the log. The blade makes the vertical cut, swings to horizontal and makes the cut that frees a square-edged board. Cut from both sides, a double cut, and the board comes off twice as wide.
The tracks, end-frames and carriage come apart, so you carry the mill to the timber instead of hauling logs to a mill.
Swing-blade or band sawmill?
- The blade
- Swing-blade (Lucas Mill)One circular blade with carbide tips. It cuts down, swings 90° and cuts across to free the board.
- Band sawmillA thin continuous band running around two wheels, cutting in one plane.
- The log
- Swing-blade (Lucas Mill)Stays where it lies. The tracks and end-frames are set up around it, and it is never turned.
- Band sawmillUsually loaded onto the mill’s bed and turned to saw each face.
- Blade care
- Swing-blade (Lucas Mill)Sharpen the tips on site with the grinder Lucas Mill supplies; re-tip when they wear. Nothing to tension or track.
- Band sawmillBands are tensioned and tracked, and resharpened or replaced as they dull.
- Kerf
- Swing-blade (Lucas Mill)5 to 6.1 mm, depending on the model (Lucas Mill).
- Band sawmillThinner, so a little more of each log ends up as boards.
- Suits
- Swing-blade (Lucas Mill)Milling big or awkward logs where they fall; beams and dimension timber; wide boards from a double cut.
- Band sawmillSteady board production from logs brought to the mill.
Lucas Mill figures as published by Lucas Mill. Band sawmill notes describe the type in general, not a particular make.

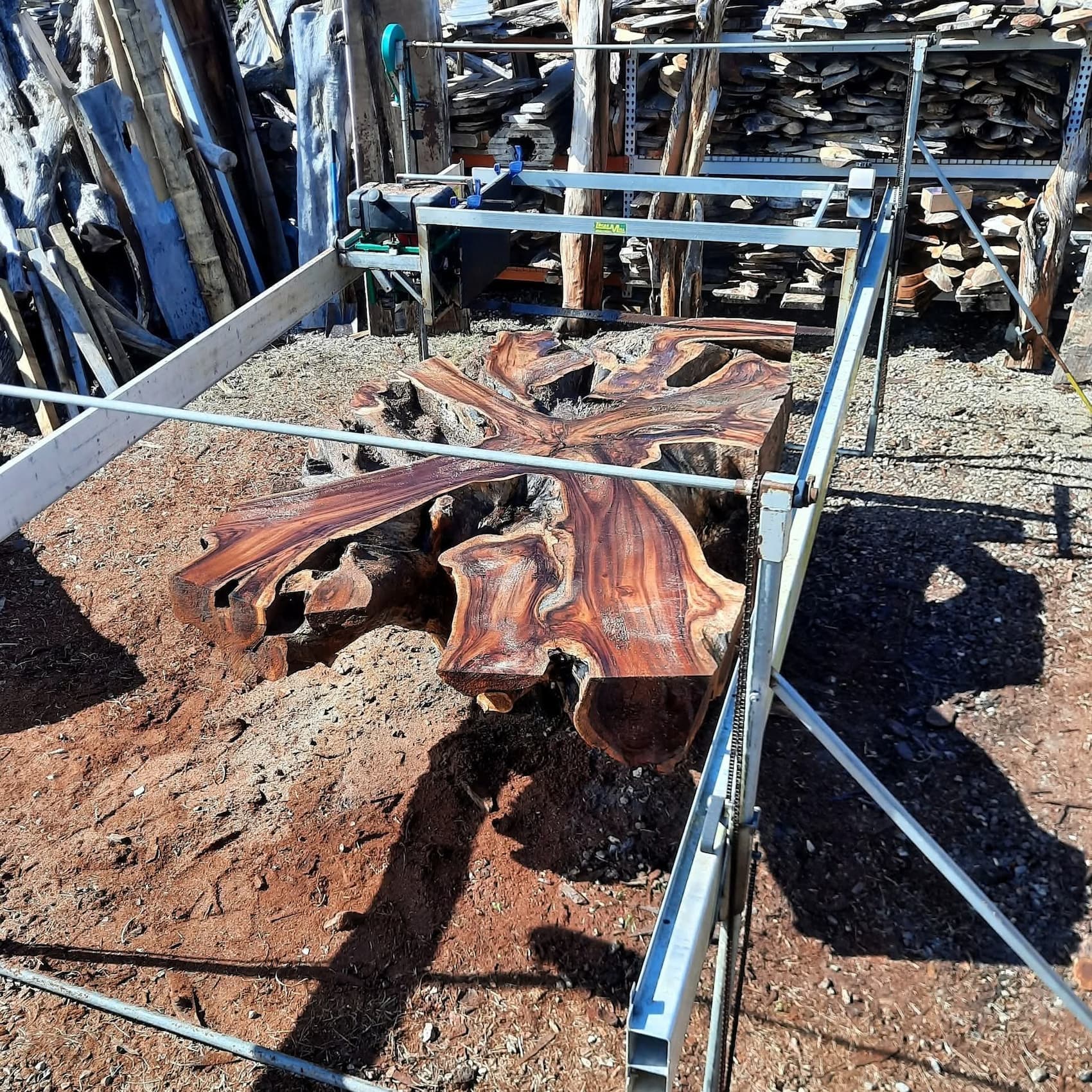

Live-edge slabs, too
Add the slabbing attachment to any Lucas Mill, or get a dedicated slabber for logs too wide for a swing-blade.

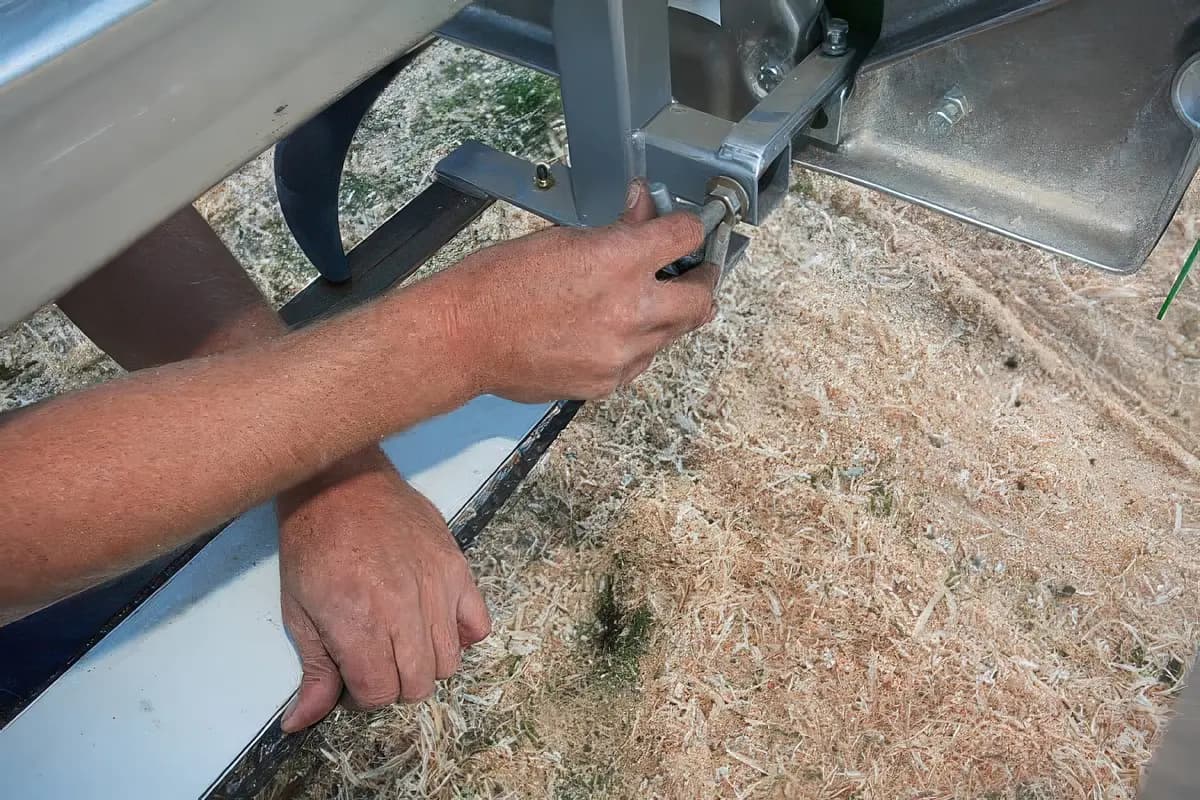

Slabbing attachment
Slabs now and then, on the mill you own
Slabs up to 60 in wide (50 in on a Model 6)
Power: Your Lucas Mill’s engine

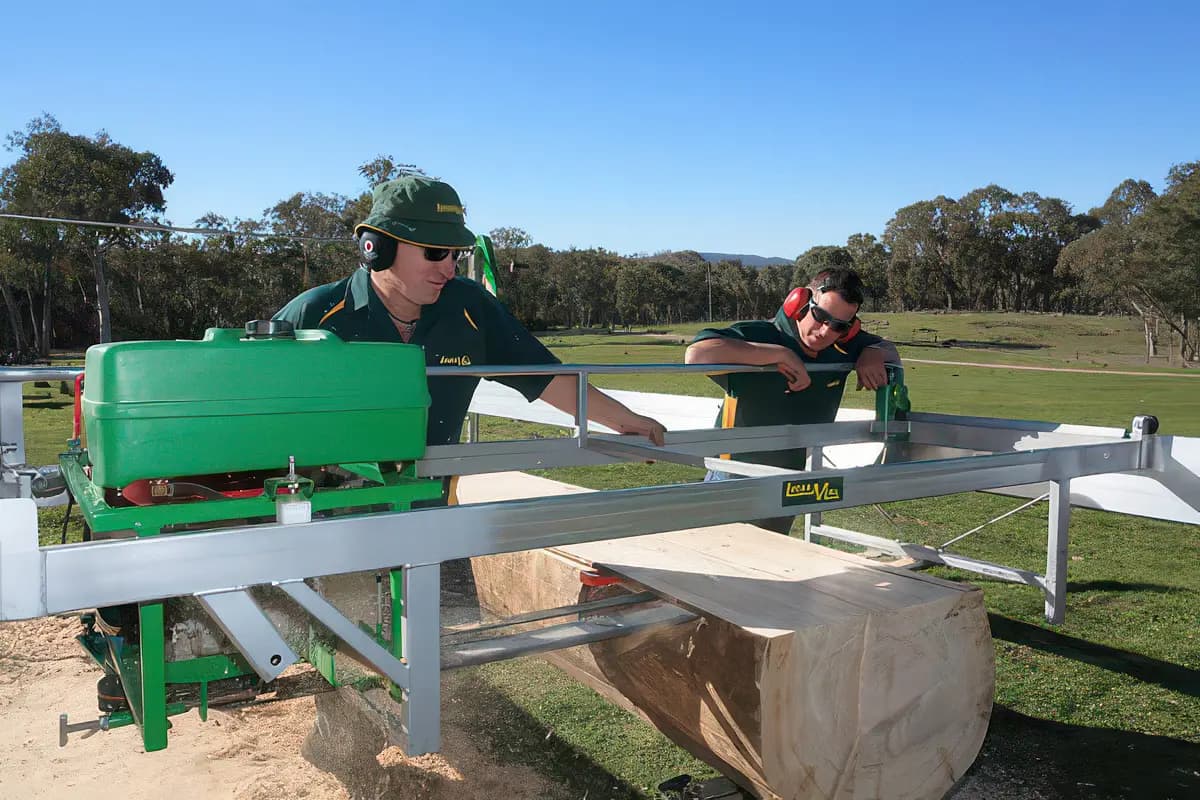

DSM23 slabbing mill
Regular slab work on its own frame
Slabs up to 5 ft wide, or 6 ft 4 in with the longer bar
Power: 23 HP Vanguard V‑twin, electric start

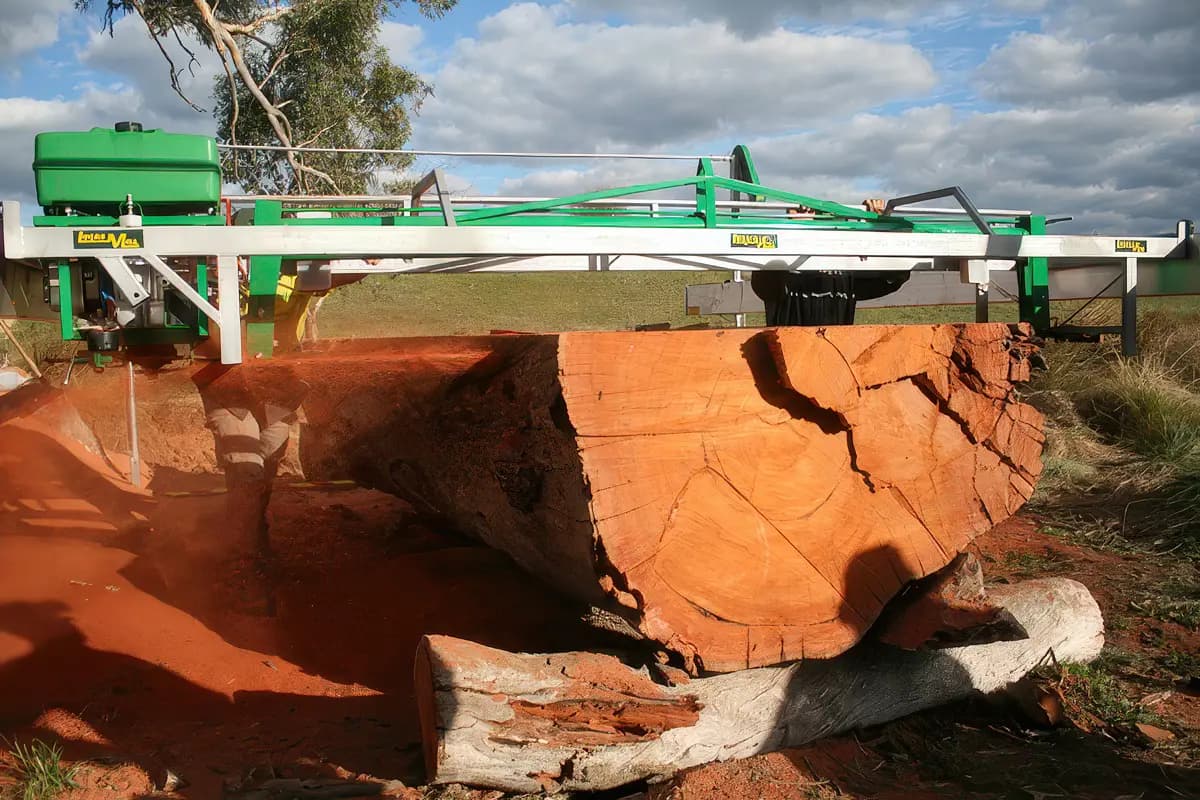

DSSM Super Slabber
Logs wider than 6 ft 4 in
Slabs up to 9 ft (2.7 m) wide, the widest in the Lucas Mill range
Power: 23 HP Vanguard, electric start
Widths as published by Lucas Mill; slabbing attachment widths per Bailey's store listings.
Built in Australia, sold here by Bailey's
- Made in
- Wooragee, Victoria, AustraliaFamily-owned, building swing-blade mills since 1994.
- Sold worldwide
- 20,000+ machines in 100+ countriesLucas Mill’s own count of machines sold.
- Shoot-out result
- 1,260 board feet an hourA Lucas Mill Model 8 EFI at the 2017 Great Portable Sawmill Shoot-Out. An event result, not a production rating.
- In North America
- Bailey’s, for the U.S., Canada and MexicoNamed on Lucas Mill’s own dealer list.
- Warranty
- Three-year limited warrantyFrom Lucas Mill, on faulty parts and workmanship. Engines are covered by Kohler or Briggs & Stratton.
As published by Lucas Mill. The shoot-out figure is from the event write-up Lucas Mill publishes.
Lucas Mill questions
Anything else, call a specialist at 1-888-465-8227.
Where is Lucas Mill made?
In Australia. The Lucas family founded Lucas Mill in 1994 in Wooragee, Victoria, and the family-owned company still builds its mills there. Bailey’s, in Woodland, California, is the sole Lucas Mill distributor for the United States, Canada and Mexico.
How much does a Lucas Mill cost?
It depends on the model and what you add, such as the slabbing attachment or track extensions. Current prices for each model are on Bailey’s main store, and financing is available. A sawmill specialist can quote the exact package you need.
Lucas Mill price list (PDF) (opens in a new tab)See current Lucas Mill prices (opens in a new tab)Financing options
Do you sell used Lucas Mills?
Bailey’s sells new Lucas Mills, which come with Lucas Mill’s warranty and the full set of rails, end frames, toolbox and blade-sharpening grinder. Used mills rarely come up for sale. If budget is the concern, financing is available, and a specialist can help you pick the smallest model that cuts the boards you need.
What is the difference between a swing-blade mill and a band sawmill?
A swing-blade mill like the Lucas Mill uses one circular blade that cuts vertically, then swings 90 degrees to cut horizontally and free the board, so the log never has to be turned. The mill frame is set up around the log where it lies. A band sawmill runs a thin continuous band around two wheels: it cuts a thinner kerf, but the band has to be tensioned and tracked, and the log is usually loaded onto the mill and turned to saw each face.
Which Lucas Mill should I buy?
Start with the biggest board you want to cut. The 6-16 and 6-18 cut boards up to 6.3 × 12.6 in, the 7-23 up to 7.9 × 15.7 in, the 8-30 up to 8.5 × 16.9 in and the 10-30 up to 10 × 20 in. Our mill chooser draws each model’s biggest board to scale, or a specialist can help you pick.

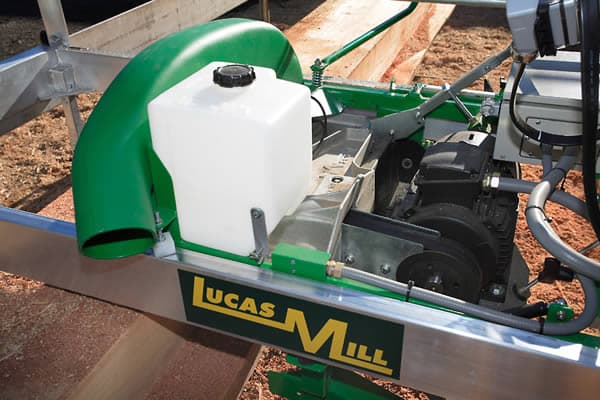

Does Bailey’s sell the electric Lucas Mills?
No. Lucas Mill’s electric models, the 8-15 and 10-15, run a 400 V, 3-phase, 60 Hz Lafert motor, which is not a common supply in the U.S., so Bailey’s no longer carries them. Every Lucas Mill Bailey’s sells is petrol powered.
Do Lucas Mill blades need sharpening?
Yes. The blade has tungsten carbide tips, and Lucas Mill supplies a sharpening kit (a mini grinder with a diamond wheel on a factory-set bracket) so you can sharpen the tips regularly on site. When the tips wear out, the blade is re-tipped. There is no band to tension or track.
Can a Lucas Mill cut slabs?
Yes. Every Lucas Mill swing-blade takes the optional slabbing attachment, which runs a slabbing bar from the mill’s own engine. For regular wide-slab work, Lucas Mill also makes the DSM23 dedicated slabbing mill and the DSSM Super Slabber, which cuts slabs up to 9 ft (2.7 m) wide.
What warranty comes with a Lucas Mill?
Lucas Mill gives its machines a three-year limited warranty against faulty parts and workmanship. Engines are covered separately by their makers: Kohler on the 8-30 and 10-30, and Briggs & Stratton on the Vanguard-powered 6-16, 6-18 and 7-23. Your written warranty sets the full terms.
Get a Lucas Mill quote
Tell us about your logs and the boards or slabs you want. A Bailey's sawmill specialist will help you pick the right Lucas Mill and send you a quote.
Prices and financing
Current Lucas Mill prices are on Bailey's main store. Financing is available on sawmill equipment.
Already own a Lucas Mill?
Blades, tips and parts are on Bailey's main store.
